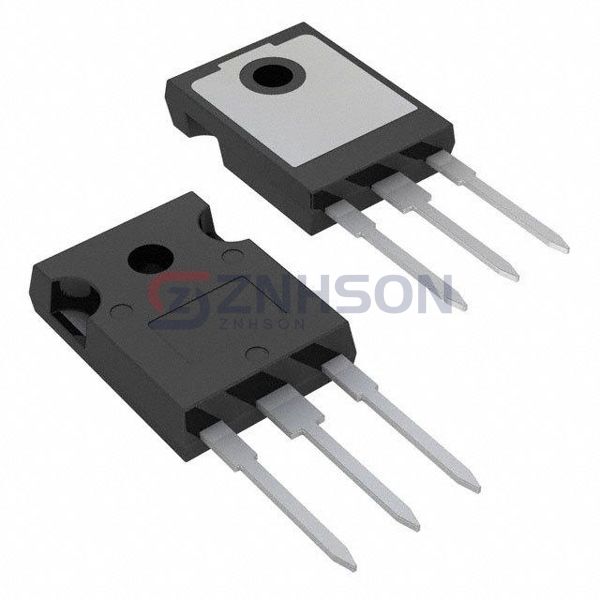

IRG7PH46UDPBF
Infineon Technologies
Infineon Technologies
IGBT 1200V 40A 390W TO247AC
$5.69
Available to order
Reference Price (USD)
1+
$11.08000
10+
$10.18700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your power management systems with the IRG7PH46UDPBF Single IGBT transistor from Infineon Technologies. This Discrete Semiconductor Product boasts high current density and excellent thermal conductivity, making it suitable for high-power applications. From railway systems to wind turbines, the IRG7PH46UDPBF provides reliable and efficient operation. Infineon Technologies's advanced semiconductor technology guarantees a component that excels in performance and durability. Choose IRG7PH46UDPBF for your critical power needs.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 2V @ 15V, 40A
- Power - Max: 390 W
- Switching Energy: 2.61mJ (on), 1.85mJ (off)
- Input Type: Standard
- Gate Charge: 220 nC
- Td (on/off) @ 25°C: 45ns/410ns
- Test Condition: 600V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): 140 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AC
