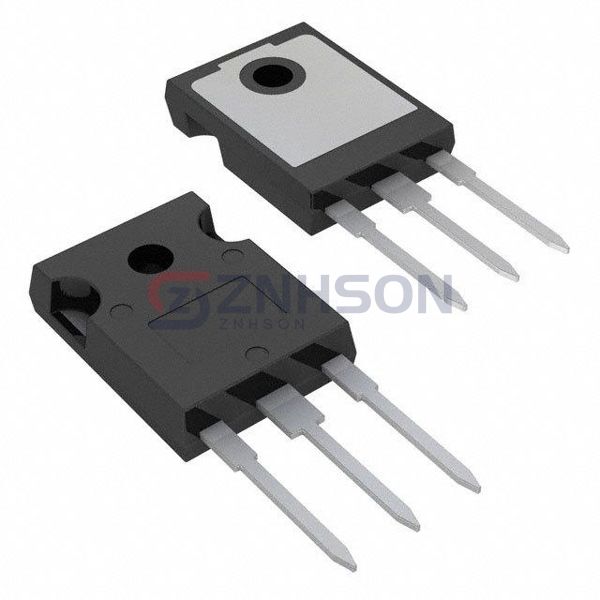

IRGP4066DPBF
Infineon Technologies
Infineon Technologies
IGBT TRENCH 600V 140A TO247AC
$6.82
Available to order
Reference Price (USD)
1+
$11.28000
10+
$10.36700
400+
$8.32548
800+
$7.78835
1,200+
$7.16170
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the IRGP4066DPBF Single IGBT transistor by Infineon Technologies, a standout in the Discrete Semiconductor Products lineup. This component excels in high-voltage and high-current applications, featuring low conduction losses and excellent switching performance. Perfect for use in welding equipment, UPS systems, and induction heating, the IRGP4066DPBF ensures reliability and efficiency. Its rugged construction and advanced technology make it a top choice for engineers seeking durable and high-performing IGBTs. Upgrade your designs with the IRGP4066DPBF for unmatched power control.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 140 A
- Current - Collector Pulsed (Icm): 225 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 75A
- Power - Max: 454 W
- Switching Energy: 2.47mJ (on), 2.16mJ (off)
- Input Type: Standard
- Gate Charge: 150 nC
- Td (on/off) @ 25°C: 50ns/200ns
- Test Condition: 400V, 75A, 10Ohm, 15V
- Reverse Recovery Time (trr): 155 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AC
