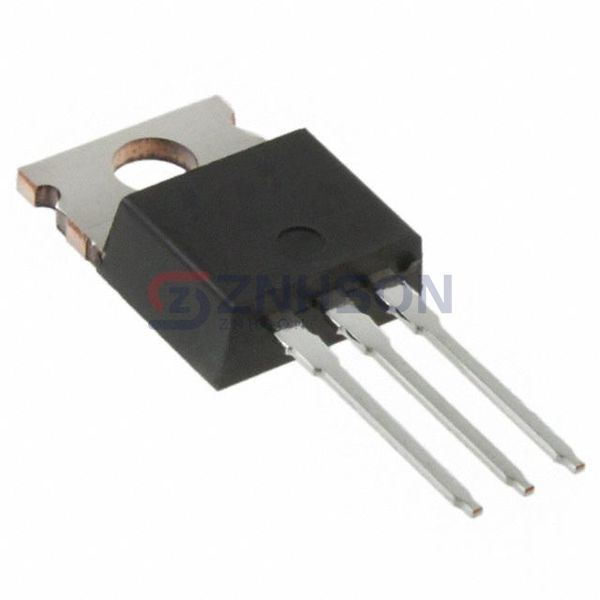

IRL520PBF
Vishay Siliconix
Vishay Siliconix
MOSFET N-CH 100V 9.2A TO220AB
$1.53
Available to order
Reference Price (USD)
1+
$1.28000
50+
$1.02320
100+
$0.89530
500+
$0.69430
1,000+
$0.54813
2,500+
$0.51159
5,000+
$0.48601
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IRL520PBF by Vishay Siliconix is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the IRL520PBF is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 9.2A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4V, 5V
- Rds On (Max) @ Id, Vgs: 270mOhm @ 5.5A, 5V
- Vgs(th) (Max) @ Id: 2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 12 nC @ 5 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 490 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 60W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220AB
- Package / Case: TO-220-3
