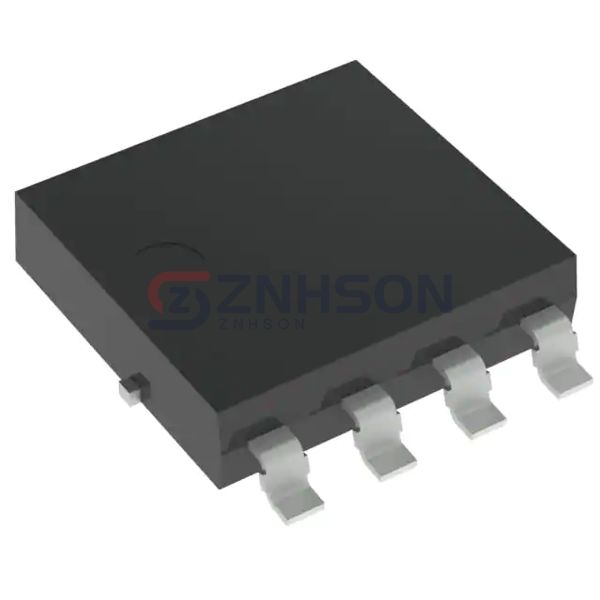

NVMJS1D2N04CLTWG
onsemi
onsemi
MOSFET N-CH 40V 41A/237A 8LFPAK
$1.89
Available to order
Reference Price (USD)
1+
$1.89400
500+
$1.87506
1000+
$1.85612
1500+
$1.83718
2000+
$1.81824
2500+
$1.7993
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NVMJS1D2N04CLTWG from onsemi sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to onsemi's NVMJS1D2N04CLTWG for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 41A (Ta), 237A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.2mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id: 2V @ 170µA
- Gate Charge (Qg) (Max) @ Vgs: 93 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 5600 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 3.8W (Ta), 128W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-LFPAK
- Package / Case: SOT-1205, 8-LFPAK56
