ISL54061IRTZ
Renesas Electronics America Inc
Renesas Electronics America Inc
IC SWITCH DUAL SPST 10TDFN
$0.90
Available to order
Reference Price (USD)
2,000+
$0.72900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Renesas Electronics America Inc's ISL54061IRTZ, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The ISL54061IRTZ meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 2
- On-State Resistance (Max): 520mOhm (Typ)
- Channel-to-Channel Matching (ΔRon): 10mOhm
- Voltage - Supply, Single (V+): 1.8V ~ 6.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 35ns, 10ns
- -3db Bandwidth: 60MHz
- Charge Injection: 170pC
- Channel Capacitance (CS(off), CD(off)): 36pF
- Current - Leakage (IS(off)) (Max): 8.13nA
- Crosstalk: -75dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount

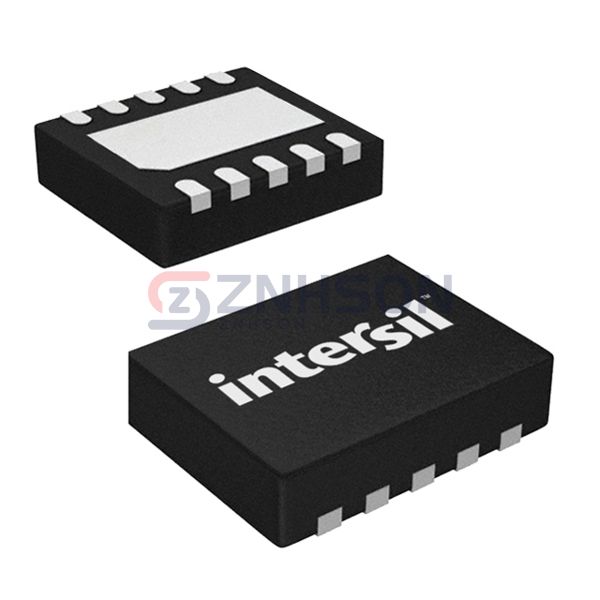

- Package / Case: 10-VFDFN Exposed Pad
- Supplier Device Package: 10-TDFN (3x3)
