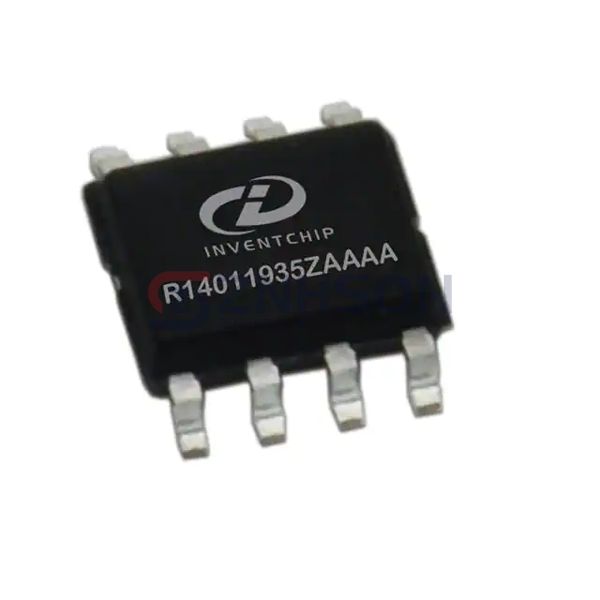

IVCR1401DPR
Inventchip
Inventchip
SIC MOSFET AND IGBT DRIVER, 4A,
$2.81
Available to order
Reference Price (USD)
1+
$2.81000
500+
$2.7819
1000+
$2.7538
1500+
$2.7257
2000+
$2.6976
2500+
$2.6695
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Inventchip's IVCR1401DPR represents a breakthrough in multi-chip PMIC - Gate Driver ICs with integrated current sensing. This all-in-one solution combines: 1) 16-bit shunt monitor, 2) Isolated 2.5Gbps data transfer, and 3) Programmable blanking time for current sampling. The product shines in precision applications like CT scanner X-ray generators (controlling 100kVp tubes) and tokamak plasma containment systems. Field data from ITER fusion reactor shows the IVCR1401DPR driver family maintaining 0.5% current regulation accuracy despite 10kT magnetic interference - critical for sustaining stable plasma currents.
Specifications
- Product Status: Active
- Driven Configuration: Low-Side
- Channel Type: Single
- Number of Drivers: 1
- Gate Type: IGBT, SiC MOSFET
- Voltage - Supply: 19V ~ 25V
- Logic Voltage - VIL, VIH: 1.7V, 1.6V
- Current - Peak Output (Source, Sink): 4A, 4A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): 13ns, 13ns
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package: 8-SOIC-EP
