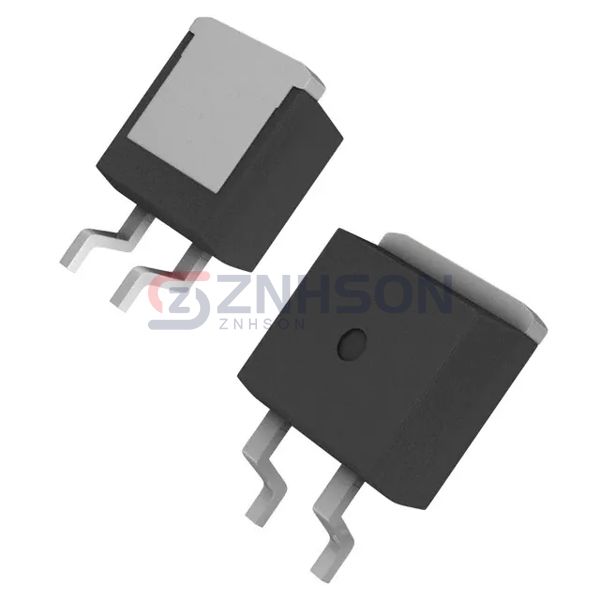

IXGA20N120A3
IXYS
IXYS
IGBT 1200V 40A 180W TO263
$6.73
Available to order
Reference Price (USD)
1+
$5.29000
10+
$4.72500
50+
$4.25260
100+
$3.87450
250+
$3.49652
500+
$3.13740
1,000+
$2.64600
2,500+
$2.52000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXGA20N120A3 by IXYS is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With IXYS's reputation for quality, the IXGA20N120A3 is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 120 A
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 20A
- Power - Max: 180 W
- Switching Energy: 2.85mJ (on), 6.47mJ (off)
- Input Type: Standard
- Gate Charge: 50 nC
- Td (on/off) @ 25°C: 16ns/290ns
- Test Condition: 960V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: TO-263AA
