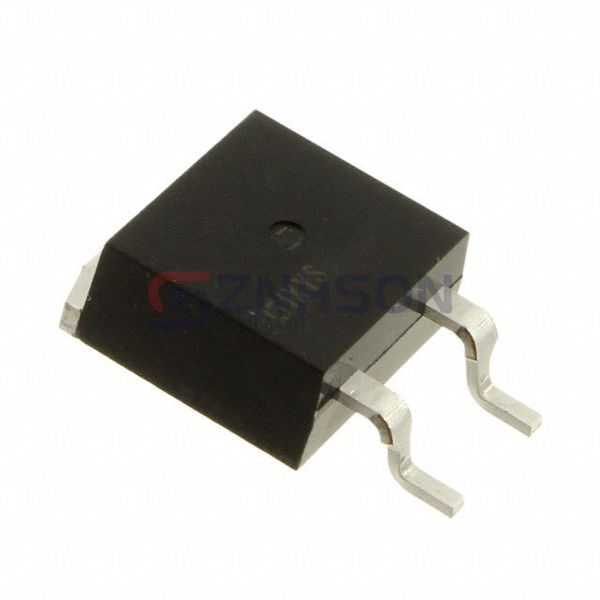

IXTA1R6N100D2HV
IXYS
IXYS
MOSFET N-CH 1000V 1.6A TO263HV
$4.66
Available to order
Reference Price (USD)
50+
$2.58760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXTA1R6N100D2HV by IXYS is a standout in the Transistors - FETs, MOSFETs - Single segment, offering exceptional power handling and efficiency. Designed for precision and reliability, this MOSFET is widely used in audio amplifiers, DC-DC converters, and battery management systems. With advanced features like avalanche energy resistance and low leakage current, it's a top pick for professionals in the Discrete Semiconductor Products field. Choose IXYS for innovation you can depend on.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 1000 V
- Current - Continuous Drain (Id) @ 25°C: 1.6A (Tj)
- Drive Voltage (Max Rds On, Min Rds On): 0V
- Rds On (Max) @ Id, Vgs: 10Ohm @ 800mA, 0V
- Vgs(th) (Max) @ Id: 4.5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 27 nC @ 5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 645 pF @ 10 V
- FET Feature: Depletion Mode
- Power Dissipation (Max): 100W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: TO-263HV
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
