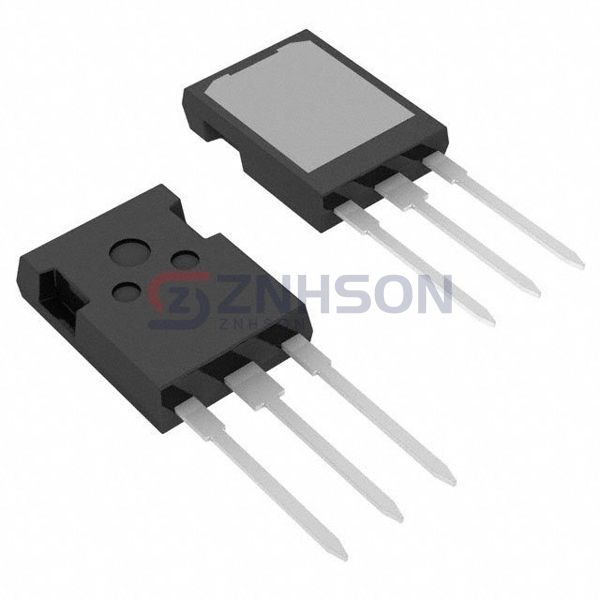

IXTX22N100L
IXYS
IXYS
MOSFET N-CH 1000V 22A PLUS247-3
$45.21
Available to order
Reference Price (USD)
1+
$33.00000
30+
$28.05000
120+
$26.07000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXTX22N100L by IXYS is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the IXTX22N100L is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 1000 V
- Current - Continuous Drain (Id) @ 25°C: 22A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 600mOhm @ 11A, 20V
- Vgs(th) (Max) @ Id: 5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 270 nC @ 15 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 7050 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 700W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: PLUS247™-3
- Package / Case: TO-247-3 Variant
