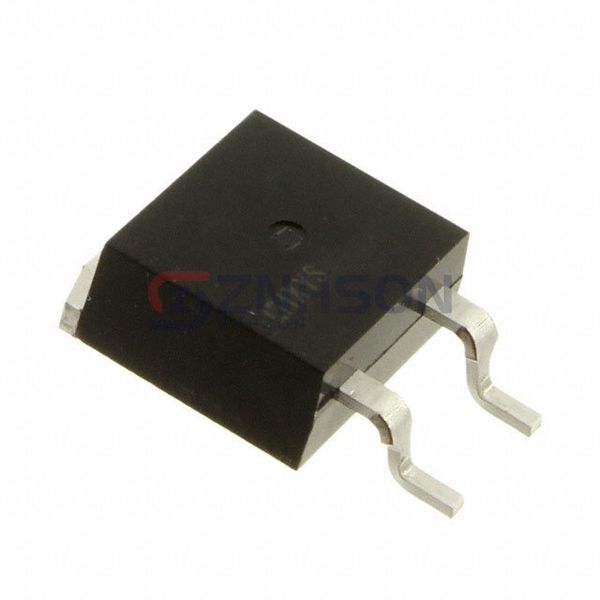

IXXA30N65C3HV
IXYS

IXYS
IGBT
$5.29
Available to order
Reference Price (USD)
50+
$2.83500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience top-tier performance with the IXXA30N65C3HV Single IGBT transistor from IXYS. As a key player in Discrete Semiconductor Products, this IGBT offers excellent thermal management and high switching frequency. Perfect for applications like server power supplies, LED lighting, and telecommunications, the IXXA30N65C3HV ensures energy efficiency and reliability. Trust IXYS's expertise to deliver a component that enhances your power electronics with superior functionality.
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 52 A
- Current - Collector Pulsed (Icm): 113 A
- Vce(on) (Max) @ Vge, Ic: 2.2V @ 15V, 24A
- Power - Max: 230 W
- Switching Energy: 500µJ (on), 450µJ (off)
- Input Type: Standard
- Gate Charge: 37 nC
- Td (on/off) @ 25°C: 33ns/125ns
- Test Condition: 400V, 24A, 10Ohm, 15V
- Reverse Recovery Time (trr): 33 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: TO-263HV
