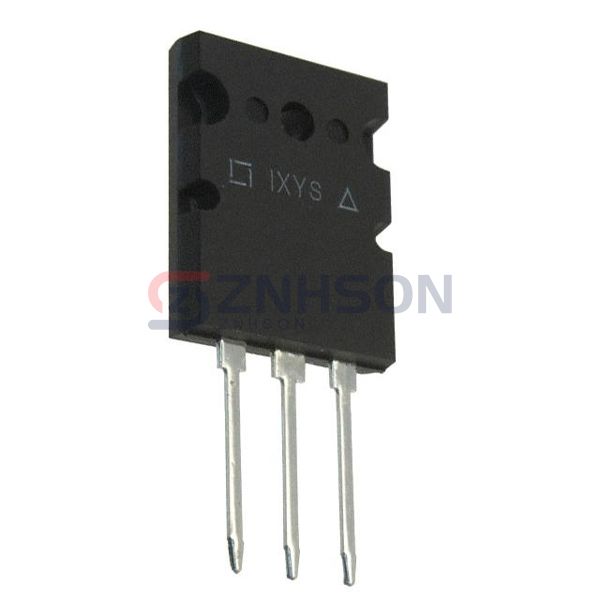

IXXK100N60C3H1
IXYS
IXYS
IGBT 600V 170A 695W TO264
$25.05
Available to order
Reference Price (USD)
1+
$21.25000
10+
$19.32000
25+
$17.87120
100+
$16.42200
250+
$14.97300
500+
$14.00700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the IXXK100N60C3H1 Single IGBT transistor from IXYS. This Discrete Semiconductor Product offers exceptional performance with low switching losses and high current capacity. Suitable for applications such as medical equipment, aerospace systems, and consumer electronics, the IXXK100N60C3H1 ensures precision and reliability. IXYS's cutting-edge technology guarantees a component that meets the highest industry standards. Choose IXXK100N60C3H1 for efficient and durable power solutions.
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 170 A
- Current - Collector Pulsed (Icm): 340 A
- Vce(on) (Max) @ Vge, Ic: 2.2V @ 15V, 70A
- Power - Max: 695 W
- Switching Energy: 2mJ (on), 950µJ (off)
- Input Type: Standard
- Gate Charge: 150 nC
- Td (on/off) @ 25°C: 30ns/90ns
- Test Condition: 360V, 70A, 2Ohm, 15V
- Reverse Recovery Time (trr): 140 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-264-3, TO-264AA Variation
- Supplier Device Package: TO-264 (IXXK)
