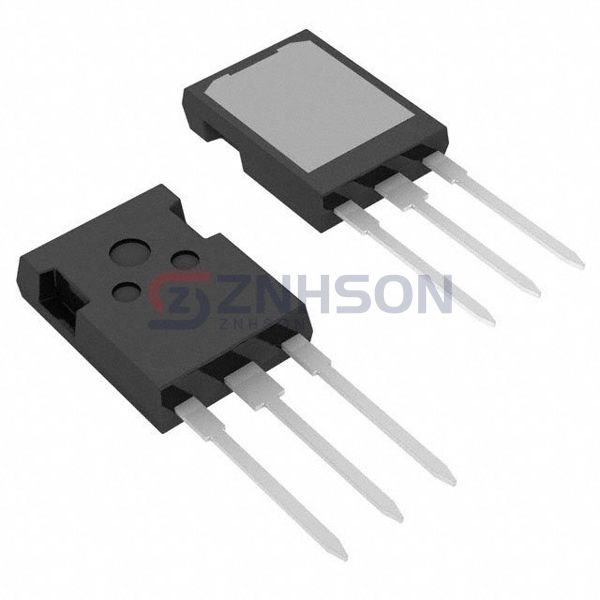

IXXX100N60B3H1
IXYS
IXYS
IGBT 600V 200A 695W TO247
$19.39
Available to order
Reference Price (USD)
30+
$14.43267
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXXX100N60B3H1 Single IGBT transistor by IXYS is a high-performance component in the Discrete Semiconductor Products category. Featuring low switching losses and high reliability, it is perfect for demanding applications like medical imaging, defense systems, and data centers. The IXXX100N60B3H1 ensures precise power control and long-term stability. With IXYS's reputation for excellence, this IGBT is a trusted choice for engineers worldwide. Incorporate IXXX100N60B3H1 into your projects for superior results.
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 200 A
- Current - Collector Pulsed (Icm): 440 A
- Vce(on) (Max) @ Vge, Ic: 1.8V @ 15V, 70A
- Power - Max: 695 W
- Switching Energy: 1.9mJ (on), 2mJ (off)
- Input Type: Standard
- Gate Charge: 143 nC
- Td (on/off) @ 25°C: 30ns/120ns
- Test Condition: 360V, 70A, 2Ohm, 15V
- Reverse Recovery Time (trr): 140 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Variant
- Supplier Device Package: PLUS247™-3
