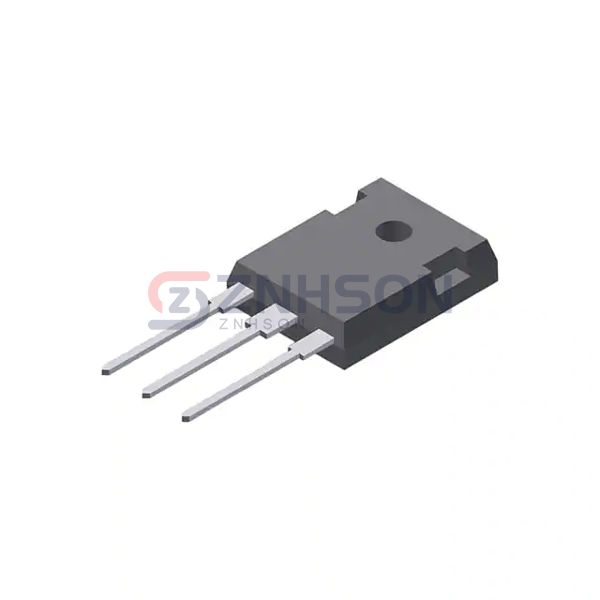

IXYH85N120A4
IXYS
IXYS
IGBT GENX4 1200V 85A TO247
$19.02
Available to order
Reference Price (USD)
1+
$19.02000
500+
$18.8298
1000+
$18.6396
1500+
$18.4494
2000+
$18.2592
2500+
$18.069
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXYH85N120A4 by IXYS is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With IXYS's reputation for quality, the IXYH85N120A4 is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 300 A
- Current - Collector Pulsed (Icm): 520 A
- Vce(on) (Max) @ Vge, Ic: 1.8V @ 15V, 85A
- Power - Max: 1150 W
- Switching Energy: 4.9mJ (on), 8.3mJ (off)
- Input Type: Standard
- Gate Charge: 200 nC
- Td (on/off) @ 25°C: 40ns/400ns
- Test Condition: 600V, 60A, 5Ohm, 15V
- Reverse Recovery Time (trr): 40 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247 (IXTH)
