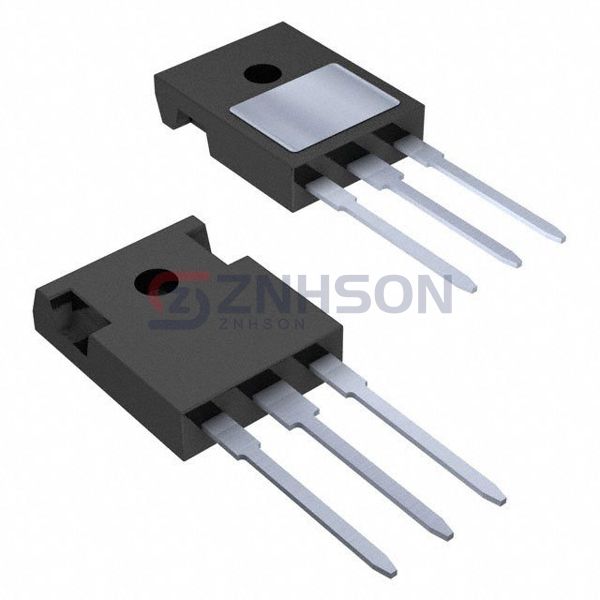

IXYJ20N120C3D1
IXYS
IXYS
IGBT 1200V 21A 105W TO247
$13.05
Available to order
Reference Price (USD)
1+
$12.31000
10+
$11.19300
30+
$10.35367
120+
$9.51408
270+
$8.67459
510+
$8.11492
1,020+
$7.46200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXYJ20N120C3D1 by IXYS is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With IXYS's reputation for quality, the IXYJ20N120C3D1 is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 21 A
- Current - Collector Pulsed (Icm): 84 A
- Vce(on) (Max) @ Vge, Ic: 3.4V @ 15V, 20A
- Power - Max: 105 W
- Switching Energy: 1.3mJ (on), 500µJ (off)
- Input Type: Standard
- Gate Charge: 53 nC
- Td (on/off) @ 25°C: 20ns/90ns
- Test Condition: 600V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): 195 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: ISO247
Related Products
onsemi
MGP7N60ED
onsemi
FGH75T65SHDT-F155
Rohm Semiconductor
RGT40NL65DGTL
STMicroelectronics
STGWT80V60DF
IXYS
IXYX25N250CV1HV
Fairchild Semiconductor
FGA40T65SHDF
onsemi
ISL9V3040P3
onsemi
FGH40N65UFDTU
onsemi

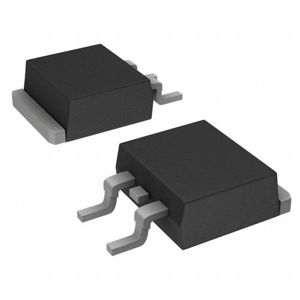

ISL9V3040S3ST-F085C
