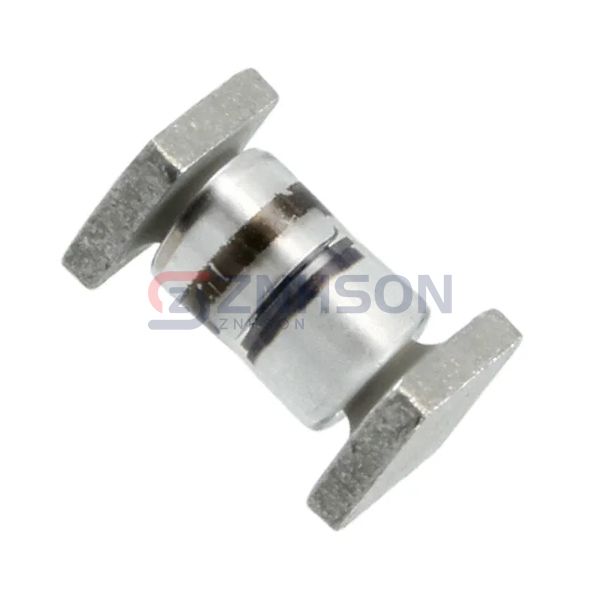

JAN1N5620US/TR
Microchip Technology
Microchip Technology
STD RECTIFIER
$8.12
Available to order
Reference Price (USD)
1+
$8.11500
500+
$8.03385
1000+
$7.9527
1500+
$7.87155
2000+
$7.7904
2500+
$7.70925
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JAN1N5620US/TR by Microchip Technology is a high-efficiency single rectifier diode designed for modern electronic applications. Part of the Diodes - Rectifiers - Single category, it provides excellent performance in power conversion and voltage regulation. Its low leakage current and high surge capacity make it suitable for medical imaging devices, data centers, and telecommunications infrastructure. The JAN1N5620US/TR is also used in smart home devices and wearable technology, ensuring seamless operation. Microchip Technology's expertise in semiconductor technology guarantees that the JAN1N5620US/TR delivers top-notch performance in any application.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 800 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 1.3 V @ 3 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 2 µs
- Current - Reverse Leakage @ Vr: 500 nA @ 800 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: SQ-MELF, A
- Supplier Device Package: D-5A
- Operating Temperature - Junction: -65°C ~ 200°C
