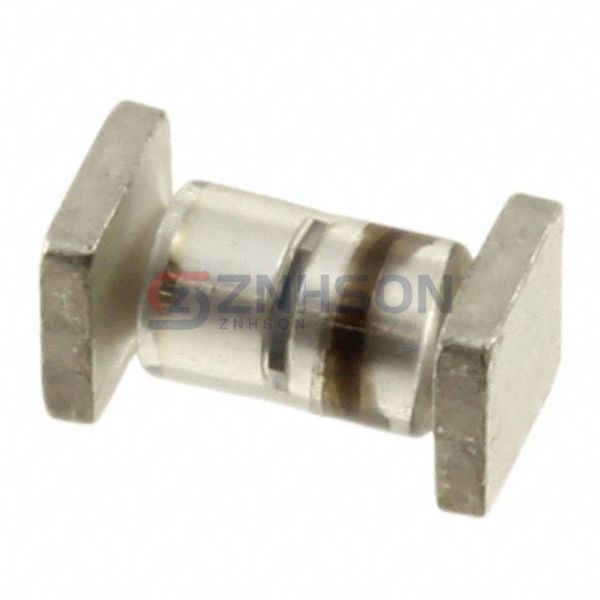

JANTX1N5806US
Microchip Technology
Microchip Technology
DIODE GEN PURP 150V 1A D5A
$6.98
Available to order
Reference Price (USD)
1+
$11.63000
10+
$10.46300
100+
$8.60250
500+
$7.20750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with the JANTX1N5806US single rectifier diode from Microchip Technology. This diode, part of the Discrete Semiconductor Products family, offers exceptional rectification efficiency and thermal stability. Its compact design and high current capacity make it suitable for space-constrained applications like mobile devices, laptops, and IoT gadgets. The JANTX1N5806US is also ideal for automotive electronics, including alternators and voltage regulators, where reliability is critical. Microchip Technology's commitment to innovation ensures that the JANTX1N5806US meets the highest industry standards for performance and longevity.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 150 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 875 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 25 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 150 V
- Capacitance @ Vr, F: 25pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SQ-MELF, A
- Supplier Device Package: D-5A
- Operating Temperature - Junction: -65°C ~ 175°C
