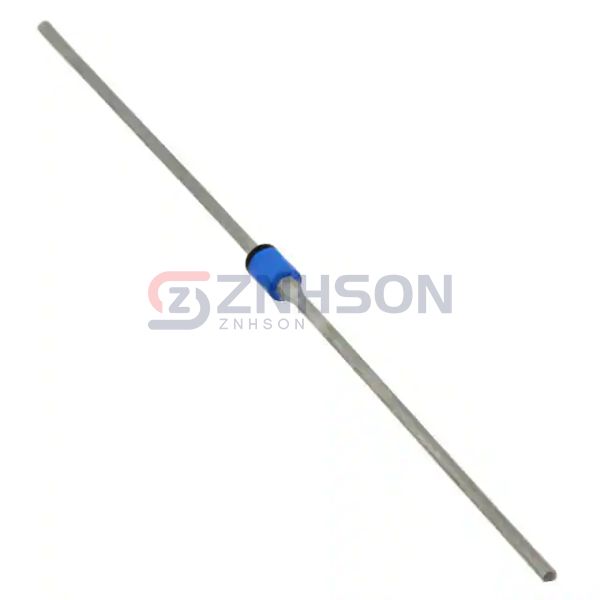

JANTX1N5809/TR
Microchip Technology
Microchip Technology
RECTIFIER UFR,FRR
$7.28
Available to order
Reference Price (USD)
1+
$7.27500
500+
$7.20225
1000+
$7.1295
1500+
$7.05675
2000+
$6.984
2500+
$6.91125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANTX1N5809/TR from Microchip Technology is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. Microchip Technology's dedication to quality means the JANTX1N5809/TR meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 875 mV @ 4 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 30 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 100 V
- Capacitance @ Vr, F: 60pF @ 10V, 1MHz
- Mounting Type: Through Hole
- Package / Case: B, Axial
- Supplier Device Package: -
- Operating Temperature - Junction: -65°C ~ 175°C
