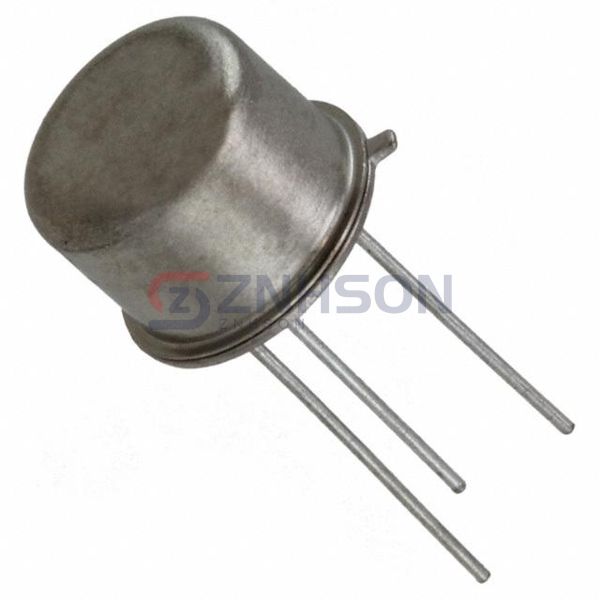

JANTX2N3506
Microchip Technology
Microchip Technology
TRANS NPN 40V 3A TO39
$18.86
Available to order
Reference Price (USD)
1+
$26.40000
10+
$24.41700
25+
$22.43760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the JANTX2N3506 Bipolar Junction Transistor (BJT) by Microchip Technology. This single BJT transistor is engineered for precision and reliability, featuring low saturation voltage and high current gain. Perfect for switching and amplification tasks, the JANTX2N3506 is widely used in consumer electronics, industrial automation, and telecommunications. Its compact design and superior thermal performance make it a preferred choice for engineers worldwide. Trust Microchip Technology for high-quality discrete semiconductor products that meet the demands of modern electronics.
Specifications
- Product Status: Active
- Transistor Type: NPN
- Current - Collector (Ic) (Max): 3 A
- Voltage - Collector Emitter Breakdown (Max): 40 V
- Vce Saturation (Max) @ Ib, Ic: 1.5V @ 250mA, 2.5A
- Current - Collector Cutoff (Max): -
- DC Current Gain (hFE) (Min) @ Ic, Vce: 40 @ 1.5A, 2V
- Power - Max: 1 W
- Frequency - Transition: -
- Operating Temperature: -65°C ~ 200°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-205AD, TO-39-3 Metal Can
- Supplier Device Package: TO-39 (TO-205AD)
