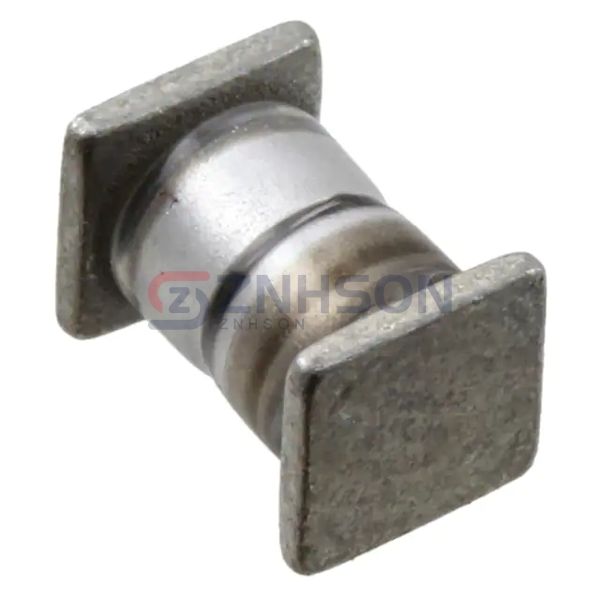

JANTXV1N5806US/TR
Microchip Technology
Microchip Technology
RECTIFIER UFR,FRR
$10.28
Available to order
Reference Price (USD)
1+
$10.27500
500+
$10.17225
1000+
$10.0695
1500+
$9.96675
2000+
$9.864
2500+
$9.76125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANTXV1N5806US/TR from Microchip Technology is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. Microchip Technology's dedication to quality means the JANTXV1N5806US/TR meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 150 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 875 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 25 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 150 V
- Capacitance @ Vr, F: 25pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SQ-MELF, A
- Supplier Device Package: D-5A
- Operating Temperature - Junction: -65°C ~ 175°C
