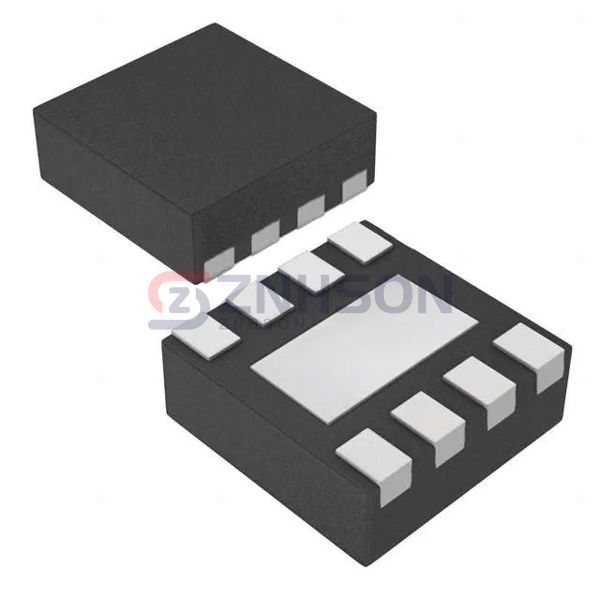

LM5109BQNGTRQ1
Texas Instruments
Texas Instruments
IC GATE DRVR HALF-BRIDGE 8WSON
$0.72
Available to order
Reference Price (USD)
4,500+
$0.71280
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments presents the LM5109BQNGTRQ1 as a revolutionary PMIC - Gate Driver IC engineered for next-gen wide bandgap semiconductors. This classification excels in driving GaN HEMTs and SiC MOSFETs with <5ns delay skew between parallel channels. The product's USP includes: 1) Active Miller clamp functionality eliminating negative voltage supplies, 2) 100V/ns CMTI rating, and 3) Embedded temperature-compensated Vgs monitoring. Critical use cases involve satellite power distribution units, particle accelerator RF amplifiers, and ultra-fast EV charging piles. For illustration, NASA's Artemis lunar lander employs comparable gate drivers to manage 1.2kV SiC modules at 500kHz switching rates in vacuum environments.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 8V ~ 14V
- Logic Voltage - VIL, VIH: 0.8V, 2.2V
- Current - Peak Output (Source, Sink): 1A, 1A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): 108 V
- Rise / Fall Time (Typ): 15ns, 15ns
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-WDFN Exposed Pad
- Supplier Device Package: 8-WSON (4x4)
