M52-040023W0545
Harwin Inc.
Harwin Inc.
CONN HEADER VERT 10POS 1.27MM
$1.53
Available to order
Reference Price (USD)
1+
$1.29000
10+
$1.13500
100+
$0.97900
500+
$0.80100
1,000+
$0.71200
5,000+
$0.62300
10,000+
$0.59185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

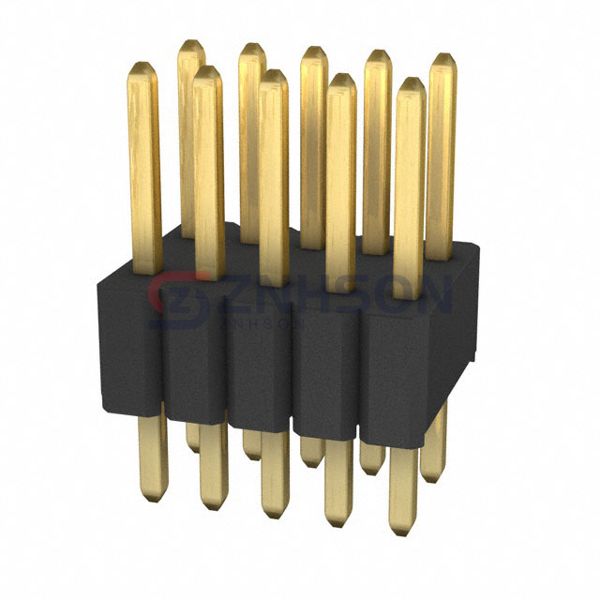

Optimize your interconnections with the M52-040023W0545 rectangular connector header from Harwin Inc.. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the M52-040023W0545 is perfect for automotive, industrial, and consumer electronics. Harwin Inc. ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.091" (2.30mm)
- Overall Contact Length: 0.346" (8.80mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: -
