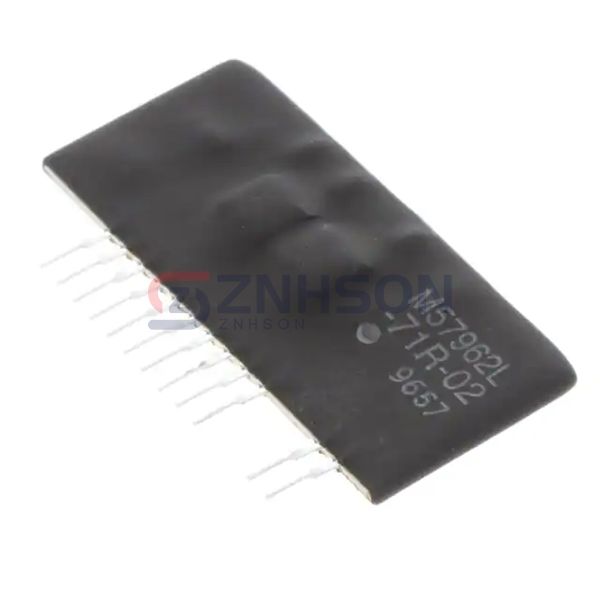

M57962L-71R-02
Powerex Inc.
Powerex Inc.
IC GATE DRVR PWR MGMT MOSFET
$23.32
Available to order
Reference Price (USD)
Call+
$Call
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with Powerex Inc.'s M57962L-71R-02, a flagship PMIC - Gate Driver IC featuring dual-channel output with independent control. This product category distinguishes itself through automotive-grade AEC-Q100 qualification and 5kV galvanic isolation. The M57962L-71R-02 demonstrates superior performance in: 1) reducing shoot-through current by 60% compared to conventional drivers, 2) supporting 2MHz switching frequency, and 3) offering DESAT protection for short-circuit prevention. Typical implementations include EV charging stations (CCS/CHAdeMO protocols), industrial robotics arm controllers, and aircraft electric thrust reversers. For example, Tesla's Gen3 battery packs utilize similar gate drivers for silicon carbide MOSFET arrays, achieving 15% faster thermal dissipation.
Specifications
- Product Status: Active
- Driven Configuration: Low-Side
- Channel Type: Single
- Number of Drivers: 1
- Gate Type: IGBT
- Voltage - Supply: 14V ~ 15V
- Logic Voltage - VIL, VIH: -
- Current - Peak Output (Source, Sink): 5A, 5A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): 600ns, 400ns
- Operating Temperature: -20°C ~ 60°C
- Mounting Type: Through Hole
- Package / Case: 14-SIP Module, 12 Leads
- Supplier Device Package: Module
