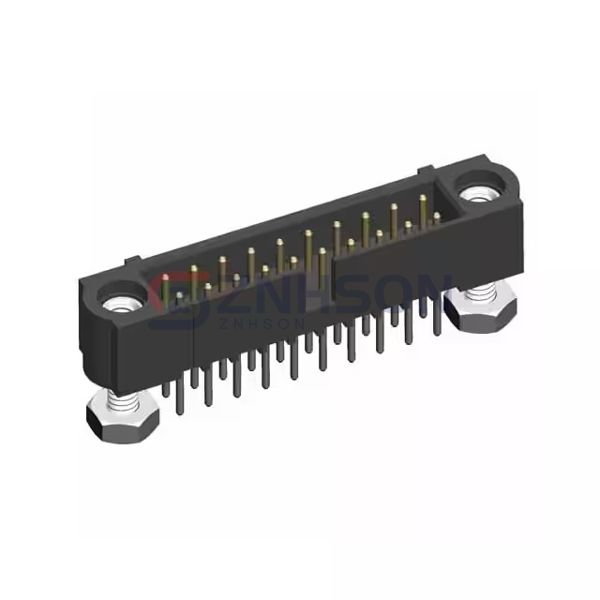

M80-5T21005MF

Harwin Inc.

Manufacturer

Harwin Inc.

Description:

DATAMATE J-TEK DIL MALE VERTICAL

Datasheet:

M80-5T21005MF Datasheet

$13.76

Available to order

Reference Price (USD)

52+

$9.94500

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Choose the M80-5T21005MF rectangular connector header from Harwin Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Harwin Inc. is committed to providing connectors that exceed industry expectations.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.079" (2.00mm)
Number of Positions: 10
Number of Rows: 2
Row Spacing - Mating: 0.079" (2.00mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Threaded
Contact Length - Mating: -
Contact Length - Post: 0.173" (4.40mm)
Overall Contact Length: -
Insulation Height: 0.220" (5.60mm)
Contact Shape: Circular
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Material: Phosphor Bronze
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware, Shielded
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 2.2A
Voltage Rating: 800VAC/DC
