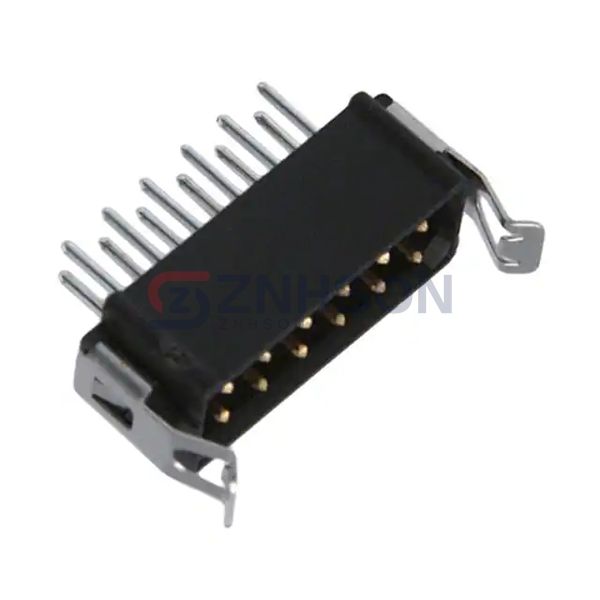

M80-8671222

Harwin Inc.

Manufacturer

Harwin Inc.

Description:

CONN HEADER VERT 12POS 2MM

Datasheet:

M80-8671222 Datasheet

$5.45

Available to order

Reference Price (USD)

$4.28000

16+

$4.10375

112+

$3.42000

512+

$2.90699

1,008+

$2.47950

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Upgrade your electronic designs with the M80-8671222 rectangular connector header by Harwin Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the M80-8671222 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Harwin Inc. for connectors that deliver performance and reliability in every application.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.079" (2.00mm)
Number of Positions: 12
Number of Rows: 2
Row Spacing - Mating: 0.079" (2.00mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Latch Lock
Contact Length - Mating: -
Contact Length - Post: 0.118" (3.00mm)
Overall Contact Length: -
Insulation Height: 0.219" (5.56mm)
Contact Shape: Circular
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Material: Phosphor Bronze
Insulation Material: Polyester, Glass Filled
Features: -
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 2.2A
Voltage Rating: 800V
