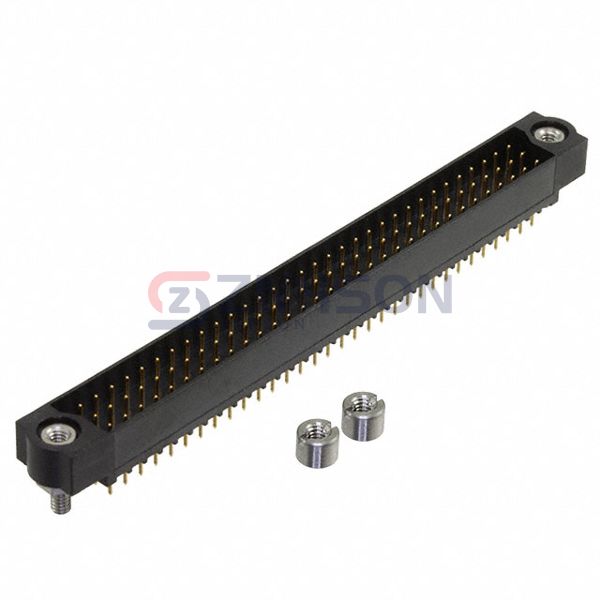

M83-LMT1M2N96-0000-000
Harwin Inc.
Harwin Inc.
CONN HEADER VERT 96POS 2MM
$35.67
Available to order
Reference Price (USD)
1+
$28.01000
12+
$25.28583
36+
$24.22556
60+
$22.71150
108+
$21.95444
252+
$20.74317
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M83-LMT1M2N96-0000-000 by Harwin Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the M83-LMT1M2N96-0000-000 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Harwin Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 96
- Number of Rows: 3
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Threaded
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 29.5µin (0.75µm)
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.2A per Contact
- Voltage Rating: 120V
