MAX309CSE+
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated

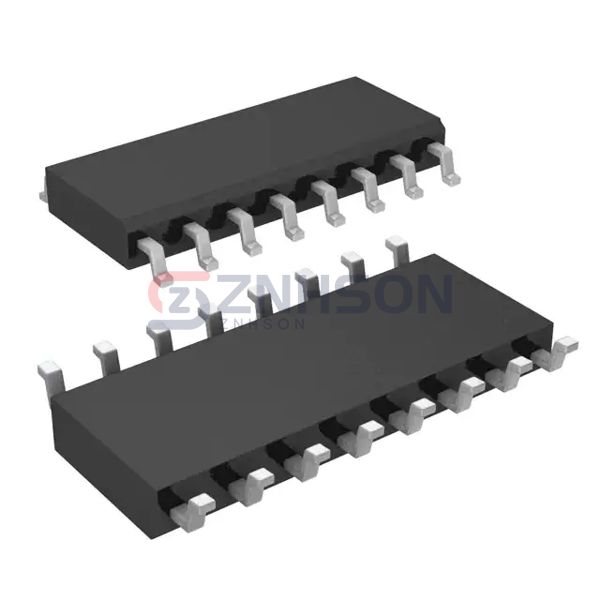

IC MULTIPLEXER 4X1 16SOIC
$11.38
Available to order
Reference Price (USD)
1+
$8.11000
10+
$7.32900
50+
$6.98840
100+
$6.08750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Analog Devices Inc./Maxim Integrated's MAX309CSE+ sets new benchmarks for analog switch ICs with its patented low-voltage operation down to 1.8V while handling analog signals up to 36V peak. This bidirectional multiplexer/demultiplexer from our premium Interface line offers break-before-make switching action with <20ns transition time. Medical ultrasound systems leverage its precision timing characteristics, while IoT edge devices benefit from its 0.1 A leakage current. The MAX309CSE+ is the preferred choice for: laboratory automation equipment, phased-array radar systems, smart grid sensors, and high-speed data loggers. Its lead-free/GREEN compliance meets global environmental standards.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 100Ohm
- Channel-to-Channel Matching (ΔRon): 1.5Ohm
- Voltage - Supply, Single (V+): 5V ~ 30V
- Voltage - Supply, Dual (V±): ±5V ~ 20V
- Switch Time (Ton, Toff) (Max): 150ns, 150ns
- -3db Bandwidth: -
- Charge Injection: 2pC
- Channel Capacitance (CS(off), CD(off)): 3pF, 26pF
- Current - Leakage (IS(off)) (Max): 750pA
- Crosstalk: -92dB @ 100kHz
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SOIC
