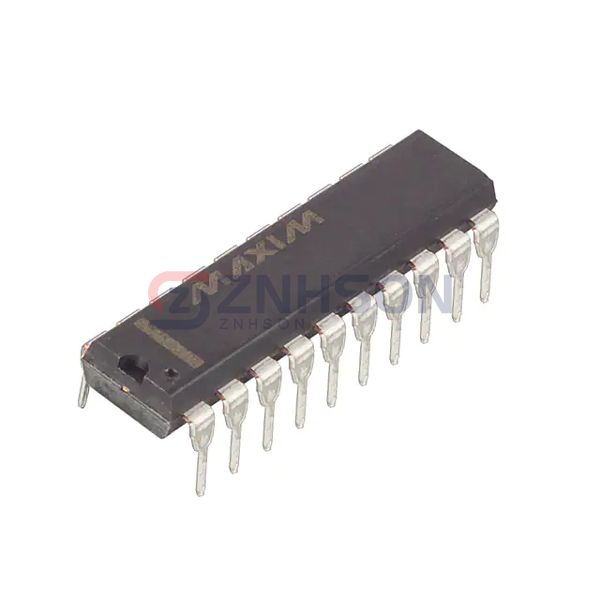

MAX4531EPP
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC MULTIPLEXER DUAL 4X1 20DIP
$1.70
Available to order
Reference Price (USD)
5,000+
$1.41984
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Analog Devices Inc./Maxim Integrated's MAX4531EPP redefines reliability in Analog Switch ICs with its 10-million operation endurance rating and <1ns skew between channels. This Interface solution incorporates adaptive power management that reduces consumption during idle periods by 90%. The MAX4531EPP is transforming signal routing in: satellite transponders, fusion reactor diagnostics, atomic clock synchronizers, and Mars rover instrumentation packages. Its radiation-tolerant design (100krad TID) and single-event upset immunity make it the go-to choice for space applications. Commercial implementations include premium automotive infotainment crosspoint switches and millimeter-wave test equipment.
Specifications
- Product Status: Obsolete
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 75Ohm
- Channel-to-Channel Matching (ΔRon): 1Ohm
- Voltage - Supply, Single (V+): 2V ~ 12V
- Voltage - Supply, Dual (V±): ±2V ~ 6V
- Switch Time (Ton, Toff) (Max): 150ns, 100ns
- -3db Bandwidth: -
- Charge Injection: 1.5pC
- Channel Capacitance (CS(off), CD(off)): 3pF, 15pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -92dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Through Hole
- Package / Case: 20-DIP (0.300", 7.62mm)
- Supplier Device Package: 20-PDIP
Related Products
Texas Instruments
TMUX1308BQBR
Vishay Siliconix
DG4157EDL-T1-GE3
Renesas Electronics America Inc
ISL43L110IHZ-T
Analog Devices Inc.

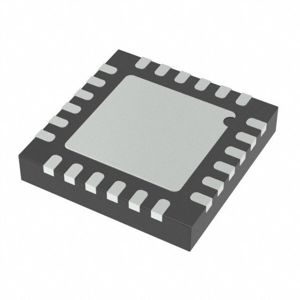

ADGS1409BCPZ-RL7
Harris Corporation
DG441AK/883
Renesas Electronics America Inc

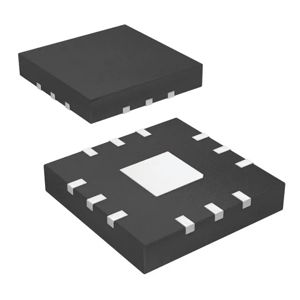

ISL54233IRTZ
