MAX4534EPD
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated

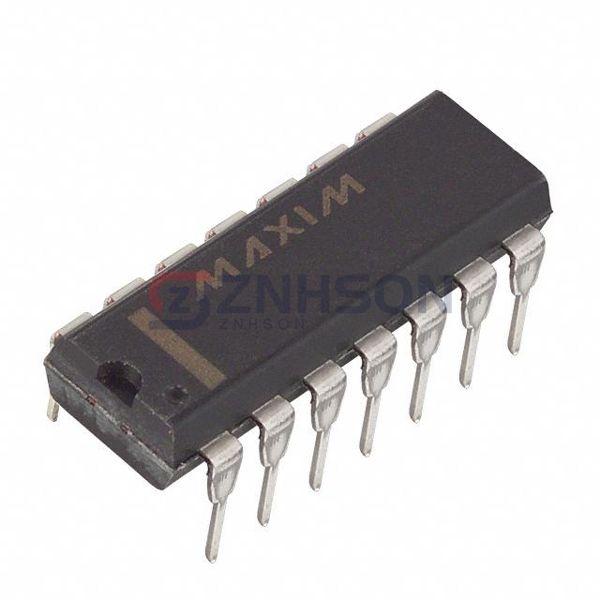

IC MULTIPLEXER 4X1 14DIP
$3.20
Available to order
Reference Price (USD)
1+
$3.20000
500+
$3.168
1000+
$3.136
1500+
$3.104
2000+
$3.072
2500+
$3.04
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the MAX4534EPD Analog Switch solution by Analog Devices Inc./Maxim Integrated, engineered for seamless signal management in complex electronic systems. Our Interface ICs collection provides robust multiplexing/demultiplexing capabilities with breakthrough performance metrics. These components exhibit nanosecond switching speeds, 15V analog signal handling, and ESD protection up to 2kV. The MAX4534EPD delivers exceptional performance in battery-powered devices, telecom switches, automotive infotainment systems, and precision measurement instruments. Engineers trust this IC for its consistent performance in harsh temperature ranges (-40 C to +125 C) and its compatibility with both digital control signals and analog waveforms.
Specifications
- Product Status: Obsolete
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 1
- On-State Resistance (Max): 400Ohm
- Channel-to-Channel Matching (ΔRon): 2Ohm
- Voltage - Supply, Single (V+): 9V ~ 36V
- Voltage - Supply, Dual (V±): ±4.5V ~ 20V
- Switch Time (Ton, Toff) (Max): 275ns, 200ns
- -3db Bandwidth: -
- Charge Injection: 1pC
- Channel Capacitance (CS(off), CD(off)): 5pF, 6.5pF
- Current - Leakage (IS(off)) (Max): 500pA
- Crosstalk: -53dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Through Hole
- Package / Case: 14-DIP (0.300", 7.62mm)
- Supplier Device Package: 14-PDIP
