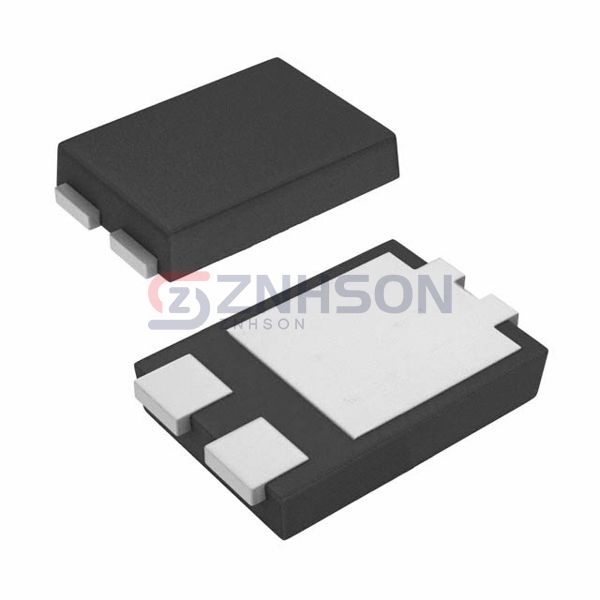

MBR1560S
SMC Diode Solutions
SMC Diode Solutions
DIODE SCHOTTKY 60V 15A TO277B
$0.73
Available to order
Reference Price (USD)
1+
$0.73000
500+
$0.7227
1000+
$0.7154
1500+
$0.7081
2000+
$0.7008
2500+
$0.6935
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MBR1560S from SMC Diode Solutions is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. SMC Diode Solutions's dedication to quality means the MBR1560S meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 60 V
- Current - Average Rectified (Io): 15A
- Voltage - Forward (Vf) (Max) @ If: 590 mV @ 15 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 200 µA @ 60 V
- Capacitance @ Vr, F: 850pF @ 5V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: TO-277, 3-PowerDFN
- Supplier Device Package: TO-277B
- Operating Temperature - Junction: -55°C ~ 150°C
