MC74LCX14DG
onsemi
onsemi

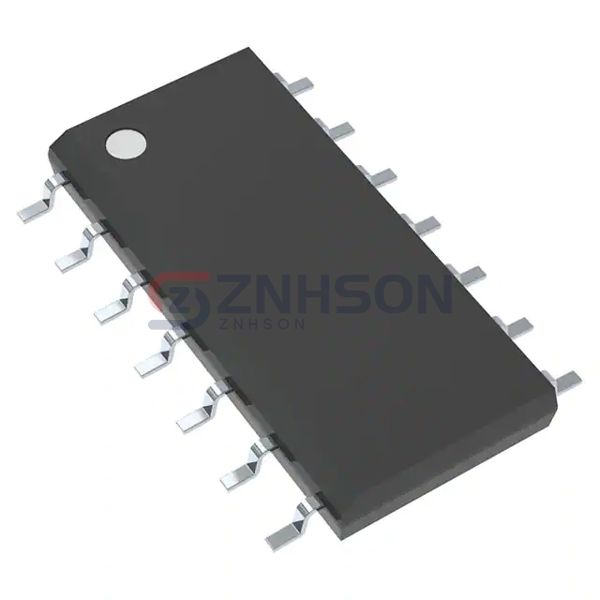

IC INV SCHMITT 6CH 1-IN 14SOIC
$0.71
Available to order
Reference Price (USD)
1+
$0.45000
55+
$0.33145
110+
$0.24673
550+
$0.18504
1,045+
$0.13878
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
onsemi's MC74LCX14DG exemplifies innovation in Logic - Gates and Inverters technology. This high-speed CMOS logic IC combines multiple gate functions with exceptional noise margin characteristics. The device's wide operating voltage range (2V to 6V) accommodates diverse design requirements while maintaining consistent performance. Common uses include signal conditioning in medical devices, encoding/decoding circuits in security systems, and interface logic in automotive electronics. The MC74LCX14DG is particularly valuable in applications requiring precise timing control, such as industrial timers, digital clocks, and microcontroller reset circuits. Its industry-standard package options ensure easy PCB layout and manufacturing compatibility.
Specifications
- Product Status: Active
- Logic Type: Inverter
- Number of Circuits: 6
- Number of Inputs: 1
- Features: Schmitt Trigger
- Voltage - Supply: 2V ~ 3.6V
- Current - Quiescent (Max): 10 µA
- Current - Output High, Low: 24mA, 24mA
- Logic Level - Low: 0.4V ~ 0.6V
- Logic Level - High: 1.7V ~ 2.2V
- Max Propagation Delay @ V, Max CL: 6.5ns @ 3.3V, 50pF
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-SOIC
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
