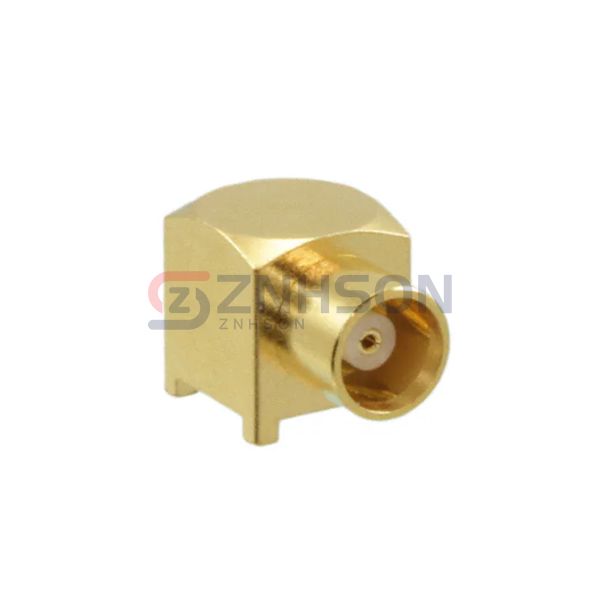

MCX-J-P-H-RA-SM1
Samtec Inc.
Samtec Inc.
CONN MCX JACK R/A 50 OHM SMT
$6.48
Available to order
Reference Price (USD)
1+
$5.45000
10+
$5.23200
25+
$4.79600
50+
$4.57800
100+
$4.36000
250+
$3.81500
500+
$3.70600
1,000+
$3.16100
2,500+
$2.94300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Samtec Inc.'s MCX-J-P-H-RA-SM1 represents the cutting edge of Coaxial Connectors (RF) technology, engineered for precision connectivity in RF and microwave systems. This connector series features innovative contact design that maintains stable electrical performance through thousands of mating cycles. Our RF coaxial connectors are characterized by their weather-resistant construction, making them suitable for both indoor and outdoor installations. Key technical advantages include VSWR <1.25, operating temperature range -55 C to +125 C, and multiple mounting options. These components are extensively used in broadcast equipment (TV/radio transmitters), wireless network infrastructure (small cells, repeaters), military communications systems, and industrial automation controls. The MCX-J-P-H-RA-SM1 variant specifically addresses the need for compact, high-density interconnects in modern phased array antenna systems.
Specifications
- Product Status: Active
- Connector Style: MCX
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Surface Mount, Right Angle
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 6 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Brass
Related Products
Rosenberger
53K501-200N5
Amphenol RF
901-10781
Amphenol SV Microwave
SF1621-60026-2S
Samtec Inc.
SMB7H-J-P-H-ST-EM1
Radiall USA, Inc.
R112303000
Radiall USA, Inc.
R114082000W
Cinch Connectivity Solutions Johnson

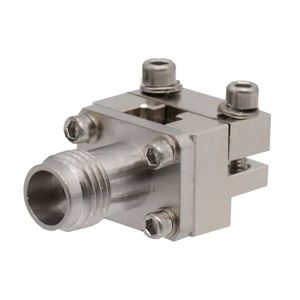

147-0701-822
Amphenol RF

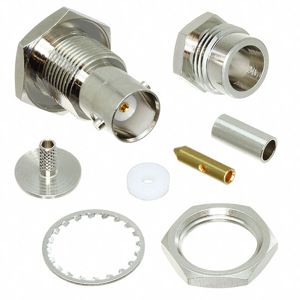

031-6332
Hirose Electric Co Ltd

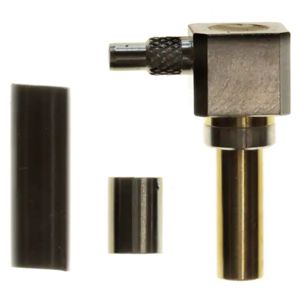

MS-156-C(LP)-1
