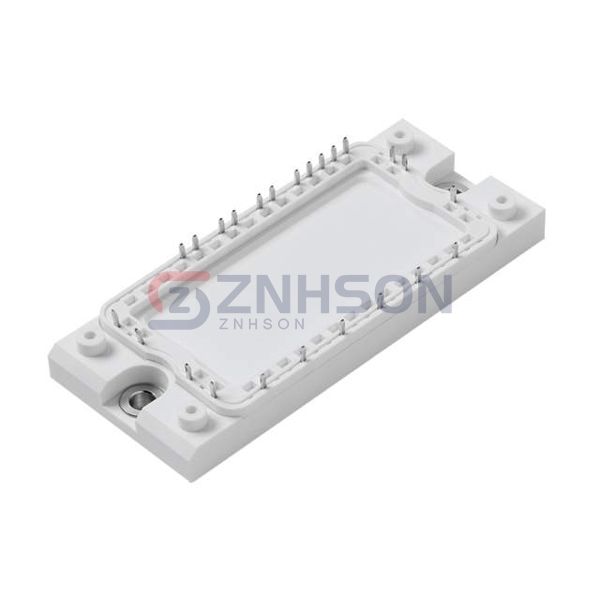

MG1225H-XBN2MM
Littelfuse Inc.
Littelfuse Inc.
IGBT MOD 1200V 25A 105W
$0.00
Available to order
Reference Price (USD)
80+
$78.00000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the MG1225H-XBN2MM IGBT module by Littelfuse Inc. sets new standards in the Discrete Semiconductor Products market. This power transistor module combines high current density with excellent thermal cycling capability. Its standout features include positive temperature coefficient for easy paralleling and built-in temperature monitoring. The MG1225H-XBN2MM finds perfect application in electric vehicle charging stations, wind turbine converters, and robotic automation systems. For instance, this module excels in high-power SMPS designs requiring >100kHz switching frequencies. Littelfuse Inc. continues to lead the IGBT module revolution with innovations like the MG1225H-XBN2MM.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Configuration: Three Phase Inverter with Brake
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 25 A
- Power - Max: 105 W
- Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 25A
- Current - Collector Cutoff (Max): 50 µA
- Input Capacitance (Cies) @ Vce: 1.1 nF @ 25 V
- Input: Three Phase Bridge Rectifier
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
Related Products
Powerex Inc.
CM100DY-24NF
Microchip Technology
APT30GF60JU2
Vishay General Semiconductor - Diodes Division
VS-GT100NA120UX
Vishay General Semiconductor - Diodes Division
VS-GB90SA120U
Powerex Inc.
CM75E3U-12H
Vishay General Semiconductor - Diodes Division

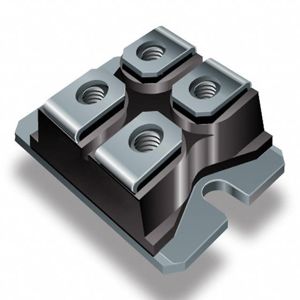

VS-GT105NA120UX
Powerex Inc.
MG400V2YS60A
Infineon Technologies
6PS04512E43G37986NOSA1
Infineon Technologies

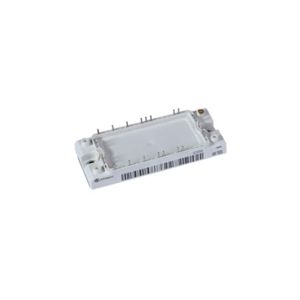

FS100R17KS4F
