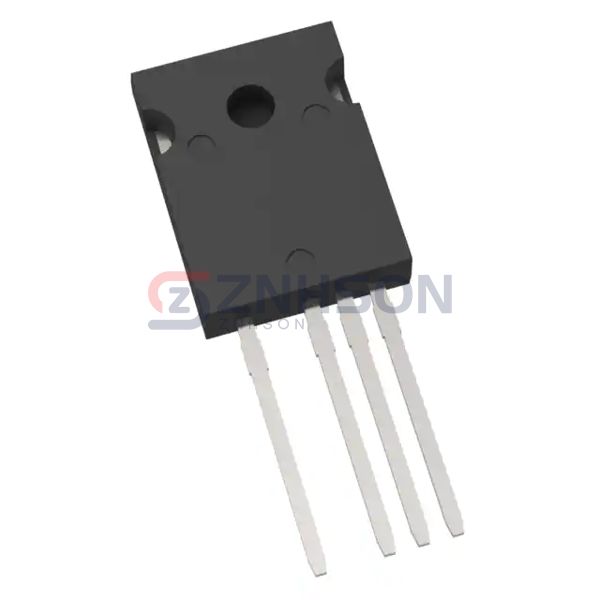

MSC025SMA120B4
Microchip Technology
Microchip Technology
TRANS SJT N-CH 1200V 103A TO247
$37.70
Available to order
Reference Price (USD)
1+
$37.70000
500+
$37.323
1000+
$36.946
1500+
$36.569
2000+
$36.192
2500+
$35.815
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power electronics with the MSC025SMA120B4 single MOSFET from Microchip Technology. As a key player in the Discrete Semiconductor Products market, this component delivers high voltage tolerance and minimal power loss. Ideal for applications like solar inverters, electric vehicles, and robotics, the MSC025SMA120B4 combines cutting-edge technology with Microchip Technology's renowned craftsmanship. Experience superior performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 103A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 31mOhm @ 40A, 20V
- Vgs(th) (Max) @ Id: 2.8V @ 3mA
- Gate Charge (Qg) (Max) @ Vgs: 232 nC @ 20 V
- Vgs (Max): +23V, -10V
- Input Capacitance (Ciss) (Max) @ Vds: 3020 pF @ 1000 V
- FET Feature: -
- Power Dissipation (Max): 500W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-4
- Package / Case: TO-247-4
