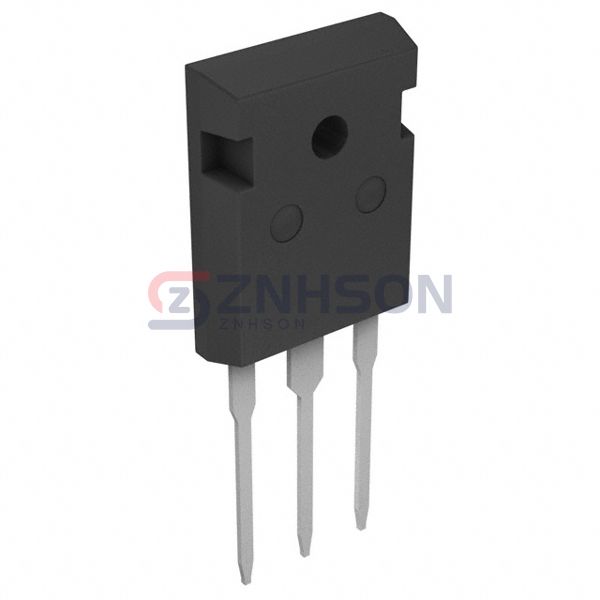

MSC040SMA120B
Microchip Technology
Microchip Technology
SICFET N-CH 1200V 66A TO247-3
$22.09
Available to order
Reference Price (USD)
1+
$22.09000
500+
$21.8691
1000+
$21.6482
1500+
$21.4273
2000+
$21.2064
2500+
$20.9855
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MSC040SMA120B by Microchip Technology is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the MSC040SMA120B is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 66A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 50mOhm @ 40A, 20V
- Vgs(th) (Max) @ Id: 2.7V @ 2mA
- Gate Charge (Qg) (Max) @ Vgs: 137 nC @ 20 V
- Vgs (Max): +23V, -10V
- Input Capacitance (Ciss) (Max) @ Vds: 1990 pF @ 1000 V
- FET Feature: -
- Power Dissipation (Max): 323W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-3
- Package / Case: TO-247-3
