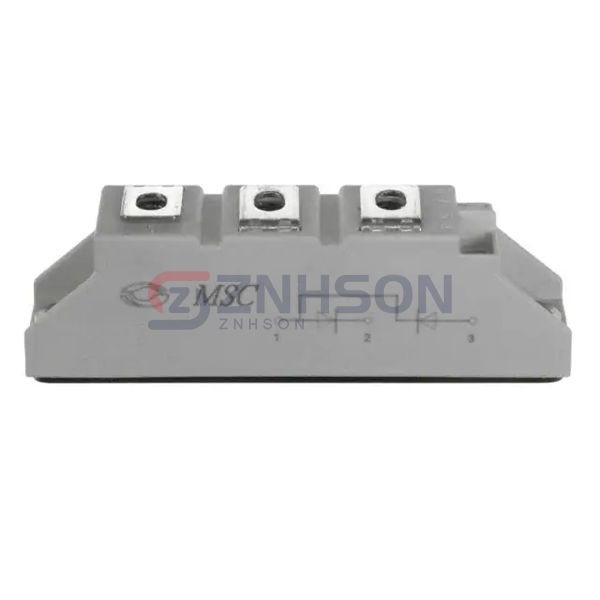

MSCD120-12
Microsemi Corporation
Microsemi Corporation
DIODE MODULE 1.2KV 120A D1
$28.58
Available to order
Reference Price (USD)
1+
$17.48000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Power your designs with the MSCD120-12 diode rectifier array by Microsemi Corporation, a flagship product in the Diodes - Rectifiers - Arrays subcategory. Featuring dual-diode common cathode/anode configurations, this versatile component excels in voltage doubling circuits and flyback converters. Its lead-free construction meets global environmental standards while maintaining robust performance in appliance controls and HVAC systems. Microsemi Corporation delivers this industry-leading solution with full traceability and RoHS compliance.
Specifications
- Product Status: Obsolete
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 1200 V
- Current - Average Rectified (Io) (per Diode): 120A
- Voltage - Forward (Vf) (Max) @ If: 1.43 V @ 300 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 6 mA @ 1200 V
- Operating Temperature - Junction: -
- Mounting Type: Chassis Mount
- Package / Case: D1
- Supplier Device Package: D1
