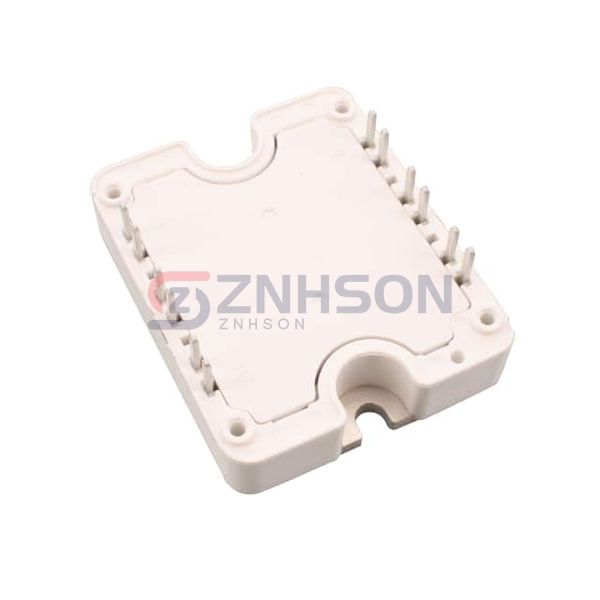

MSCSM120AM16CT1AG
Microchip Technology
Microchip Technology
PM-MOSFET-SIC-SBD~-SP1F
$235.29
Available to order
Reference Price (USD)
1+
$235.29000
500+
$232.9371
1000+
$230.5842
1500+
$228.2313
2000+
$225.8784
2500+
$223.5255
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MSCSM120AM16CT1AG from Microchip Technology is a versatile and high-efficiency component in the Discrete Semiconductor Products lineup. As part of the Transistors - FETs, MOSFETs - Arrays family, it offers excellent thermal stability and low gate charge, making it ideal for high-power applications. From renewable energy systems to telecommunications infrastructure, the MSCSM120AM16CT1AG provides reliable performance in demanding environments. Choose Microchip Technology for innovative semiconductor solutions that drive technological advancement.
Specifications
- Product Status: Active
- FET Type: 2 N Channel (Phase Leg)
- FET Feature: Silicon Carbide (SiC)
- Drain to Source Voltage (Vdss): 1200V (1.2kV)
- Current - Continuous Drain (Id) @ 25°C: 173A (Tc)
- Rds On (Max) @ Id, Vgs: 16mOhm @ 80A, 20V
- Vgs(th) (Max) @ Id: 2.8V @ 2mA
- Gate Charge (Qg) (Max) @ Vgs: 464nC @ 20V
- Input Capacitance (Ciss) (Max) @ Vds: 6040pF @ 1000V
- Power - Max: 745W (Tc)
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: SP1F
