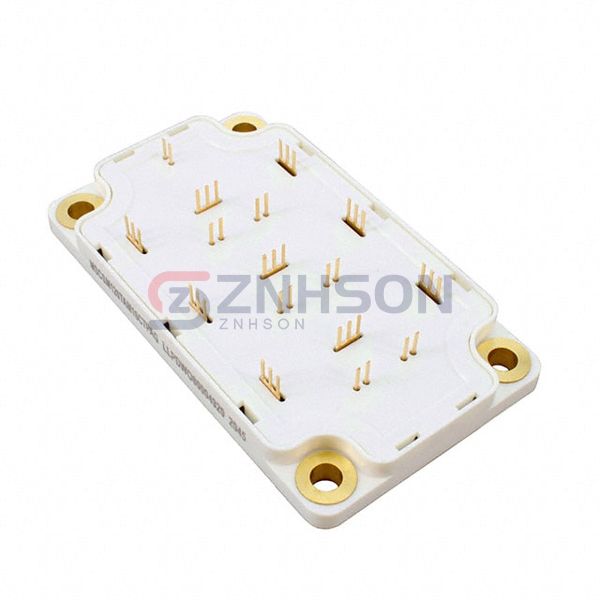

MSCSM120TAM16CTPAG
Microchip Technology
Microchip Technology
PM-MOSFET-SIC-SBD~-SP6P
$854.48
Available to order
Reference Price (USD)
1+
$854.48500
500+
$845.94015
1000+
$837.3953
1500+
$828.85045
2000+
$820.3056
2500+
$811.76075
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MSCSM120TAM16CTPAG by Microchip Technology is a top-tier selection in the Discrete Semiconductor Products range. This Transistors - FETs, MOSFETs - Arrays unit boasts high current capacity and excellent thermal performance, making it a go-to solution for power electronics. Whether you're working on electric vehicles, solar inverters, or industrial machinery, the MSCSM120TAM16CTPAG offers superior functionality and longevity. Trust Microchip Technology to provide semiconductor components that push the boundaries of innovation.
Specifications
- Product Status: Active
- FET Type: 6 N-Channel (3-Phase Bridge)
- FET Feature: Silicon Carbide (SiC)
- Drain to Source Voltage (Vdss): 1200V (1.2kV)
- Current - Continuous Drain (Id) @ 25°C: 171A (Tc)
- Rds On (Max) @ Id, Vgs: 16mOhm @ 80A, 20V
- Vgs(th) (Max) @ Id: 2.8V @ 2mA
- Gate Charge (Qg) (Max) @ Vgs: 464nC @ 20V
- Input Capacitance (Ciss) (Max) @ Vds: 6040pF @ 1000V
- Power - Max: 728W (Tc)
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: SP6-P
