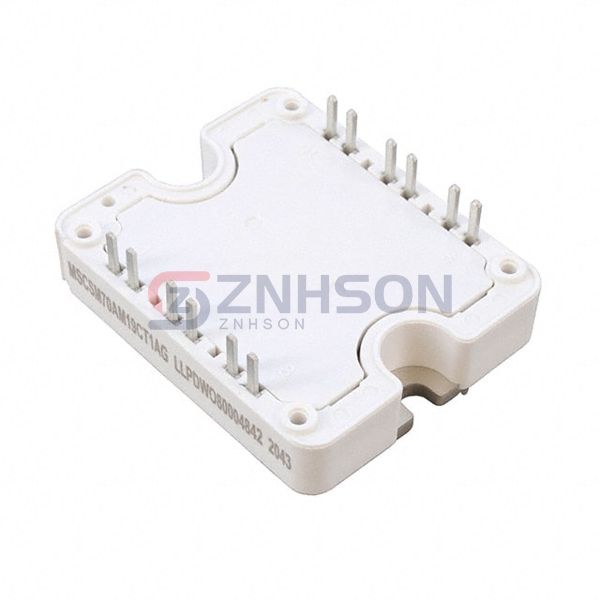

MSCSM70AM19CT1AG
Microchip Technology
Microchip Technology
PM-MOSFET-SIC-SBD~-SP1F
$126.79
Available to order
Reference Price (USD)
1+
$126.79000
500+
$125.5221
1000+
$124.2542
1500+
$122.9863
2000+
$121.7184
2500+
$120.4505
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MSCSM70AM19CT1AG from Microchip Technology is a versatile and high-efficiency component in the Discrete Semiconductor Products lineup. As part of the Transistors - FETs, MOSFETs - Arrays family, it offers excellent thermal stability and low gate charge, making it ideal for high-power applications. From renewable energy systems to telecommunications infrastructure, the MSCSM70AM19CT1AG provides reliable performance in demanding environments. Choose Microchip Technology for innovative semiconductor solutions that drive technological advancement.
Specifications
- Product Status: Active
- FET Type: 2 N Channel (Phase Leg)
- FET Feature: Silicon Carbide (SiC)
- Drain to Source Voltage (Vdss): 700V
- Current - Continuous Drain (Id) @ 25°C: 124A (Tc)
- Rds On (Max) @ Id, Vgs: 19mOhm @ 40A, 20V
- Vgs(th) (Max) @ Id: 2.4V @ 4mA
- Gate Charge (Qg) (Max) @ Vgs: 215nC @ 20V
- Input Capacitance (Ciss) (Max) @ Vds: 4500pF @ 700V
- Power - Max: 365W (Tc)
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: SP1F
