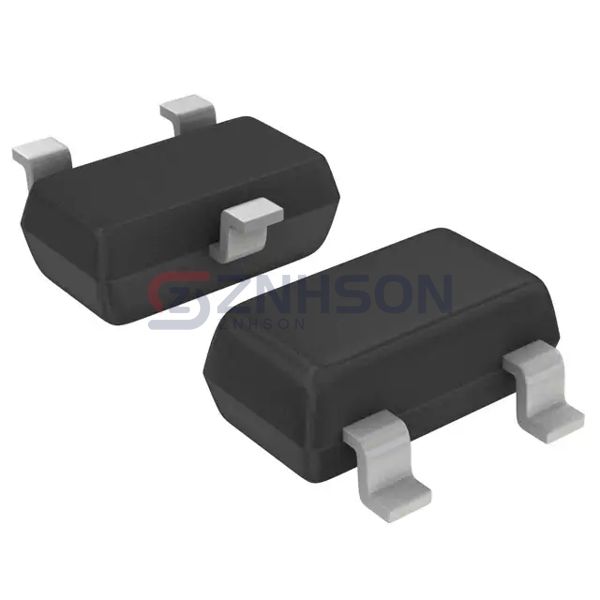

MUN2137T1G
onsemi
onsemi
TRANS PREBIAS PNP 230MW SC59
$0.02
Available to order
Reference Price (USD)
1+
$0.02459
500+
$0.0243441
1000+
$0.0240982
1500+
$0.0238523
2000+
$0.0236064
2500+
$0.0233605
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MUN2137T1G by onsemi sets new benchmarks for single BJT transistors. Featuring moisture-resistant packaging (MSL-3 rated) and 8ns switching speed, it's the preferred choice for: Drone motor controllers Solar microinverters POS terminal printers Backed by onsemi's global technical support and 5-year warranty for peace of mind.
Specifications
- Product Status: Active
- Transistor Type: PNP - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 47 kOhms
- Resistor - Emitter Base (R2): 22 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 230 mW
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SC-59
