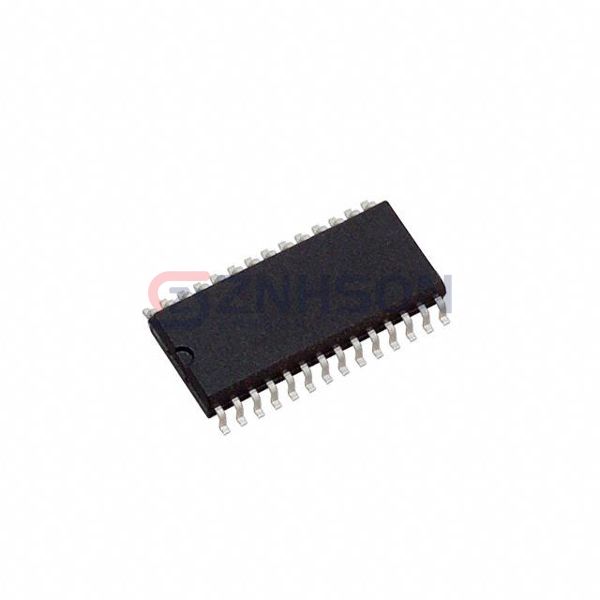

MUX36S16IDWR
Texas Instruments
Texas Instruments
IC SWITCH SINGLE 28SOIC
$6.58
Available to order
Reference Price (USD)
1,000+
$4.73985
2,000+
$4.56430
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's MUX36S16IDWR sets new benchmarks for analog switch ICs with its patented low-voltage operation down to 1.8V while handling analog signals up to 36V peak. This bidirectional multiplexer/demultiplexer from our premium Interface line offers break-before-make switching action with <20ns transition time. Medical ultrasound systems leverage its precision timing characteristics, while IoT edge devices benefit from its 0.1 A leakage current. The MUX36S16IDWR is the preferred choice for: laboratory automation equipment, phased-array radar systems, smart grid sensors, and high-speed data loggers. Its lead-free/GREEN compliance meets global environmental standards.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 16:1
- Number of Circuits: 1
- On-State Resistance (Max): 170Ohm
- Channel-to-Channel Matching (ΔRon): 6Ohm
- Voltage - Supply, Single (V+): 10V ~ 36V
- Voltage - Supply, Dual (V±): ±5V ~ 18V
- Switch Time (Ton, Toff) (Max): 136ns, 78ns
- -3db Bandwidth: -
- Charge Injection: 0.67pC
- Channel Capacitance (CS(off), CD(off)): 3pF, 12.2pF
- Current - Leakage (IS(off)) (Max): 40pA
- Crosstalk: -99db @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 28-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 28-SOIC
