NP063D300A
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS NPN/PNP SSSMINI6
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the NP063D300A by Panasonic Electronic Components, a pre-biased BJT array engineered for efficiency and durability. This discrete semiconductor product features matched transistors with built-in bias resistors, simplifying circuit design and reducing component count. Perfect for space-constrained applications, the NP063D300A excels in automotive systems, power management modules, and communication devices. Panasonic Electronic Components's commitment to quality ensures that each transistor array meets stringent performance standards, providing stable operation across a wide temperature range. Choose NP063D300A for superior signal processing and energy-efficient performance.
Specifications
- Product Status: Obsolete
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 80mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 10kOhms, 47kOhms
- Resistor - Emitter Base (R2): -
- DC Current Gain (hFE) (Min) @ Ic, Vce: 160 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 150MHz, 80MHz
- Power - Max: 125mW
- Mounting Type: Surface Mount
- Package / Case: SOT-963
- Supplier Device Package: SSSMini6-F1
Related Products
Rohm Semiconductor
IMB1AT110
Panasonic Electronic Components
XN0431100L
Panasonic Electronic Components
XP0111200L
Infineon Technologies
BCR183SE6327BTSA1
Nexperia USA Inc.
PEMB19,115
Panasonic Electronic Components
DMA261000R
Panasonic Electronic Components
DMA564030R
Toshiba Semiconductor and Storage
RN2904,LF
Rohm Semiconductor

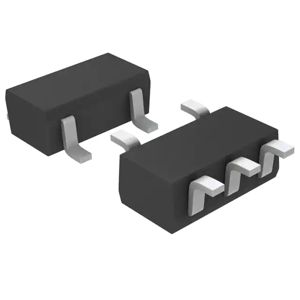

FMG11AT148
