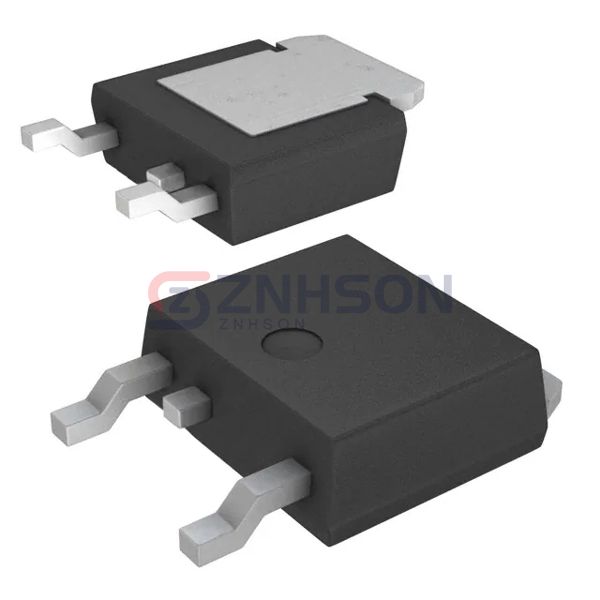

NP60N04ILF-E1-AZ
Renesas
Renesas
NP60N04ILF-E1-AZ - SWITCHINGN-CH
$1.79
Available to order
Reference Price (USD)
1+
$1.78880
500+
$1.770912
1000+
$1.753024
1500+
$1.735136
2000+
$1.717248
2500+
$1.69936
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the NP60N04ILF-E1-AZ from Renesas, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the NP60N04ILF-E1-AZ ensures reliable performance in demanding environments. Upgrade your circuit designs with Renesas's cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 60A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 6.5mOhm @ 30A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 75 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3900 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 1.2W (Ta), 100W (Tc)
- Operating Temperature: 175°C
- Mounting Type: Surface Mount
- Supplier Device Package: TO-252 (MP-3Z)
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
