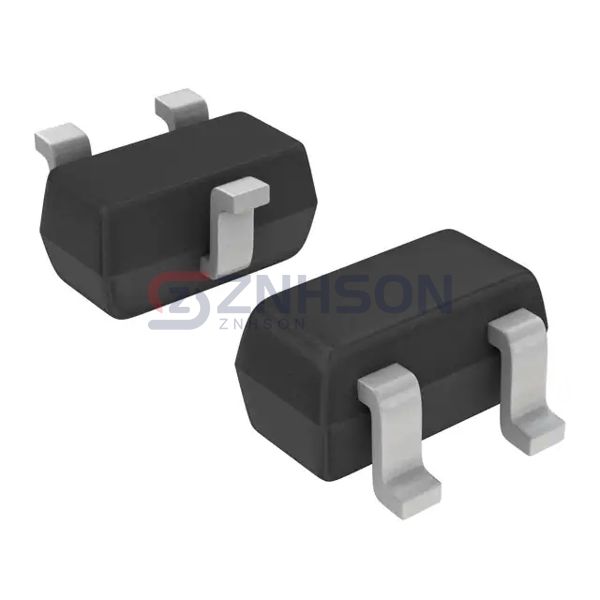

NSVBAV70TT3G
onsemi
onsemi
DIODE ARRAY SW 100V 100MA SC75
$0.05
Available to order
Reference Price (USD)
1+
$0.05298
500+
$0.0524502
1000+
$0.0519204
1500+
$0.0513906
2000+
$0.0508608
2500+
$0.050331
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the NSVBAV70TT3G by onsemi represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With onsemi's patented junction design, the NSVBAV70TT3G achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io) (per Diode): 100mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 50 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 6 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 100 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: SC-75, SOT-416
- Supplier Device Package: SC-75, SOT-416
