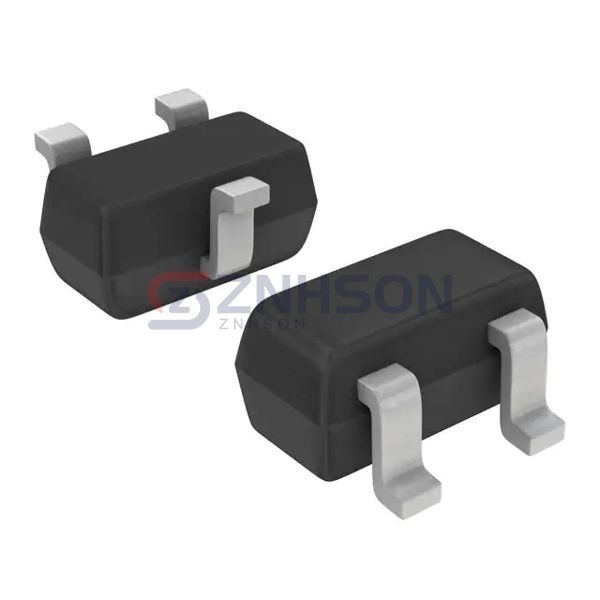

NSVDTA143ZET1G
onsemi
onsemi
TRANS PNP 50V BIPOLAR SC75-3
$0.06
Available to order
Reference Price (USD)
6,000+
$0.05943
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineers choose NSVDTA143ZET1G for its exceptional linearity in amplification circuits. onsemi's pre-biased BJT transistor demonstrates 0.1 A ultra-low cutoff current, making it indispensable for medical equipment and precision instrumentation. The TO-92 package ensures easy integration into existing designs. Discover why global OEMs prefer this solution for telecom infrastructure and renewable energy systems.
Specifications
- Product Status: Active
- Transistor Type: PNP - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 4.7 kOhms
- Resistor - Emitter Base (R2): 47 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 200 mW
- Mounting Type: Surface Mount
- Package / Case: SC-75, SOT-416
- Supplier Device Package: SC-75, SOT-416
