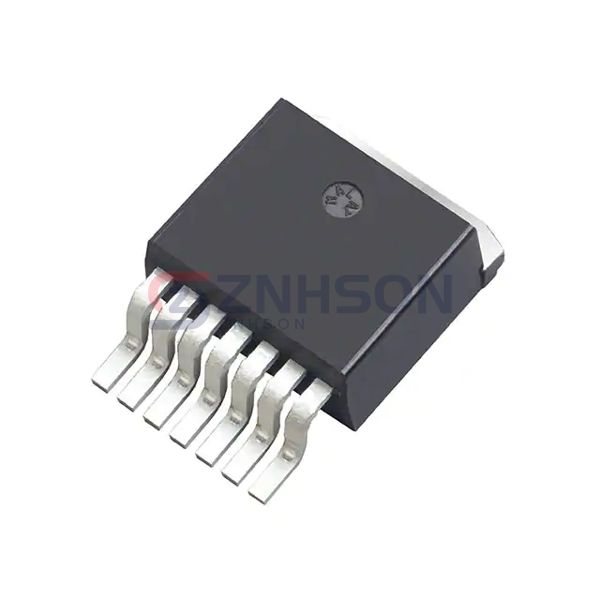

NTBG040N120SC1
onsemi
onsemi
SICFET N-CH 1200V 60A D2PAK-7
$21.66
Available to order
Reference Price (USD)
1+
$21.66000
500+
$21.4434
1000+
$21.2268
1500+
$21.0102
2000+
$20.7936
2500+
$20.577
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the NTBG040N120SC1 by onsemi, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the NTBG040N120SC1 is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 60A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 56mOhm @ 35A, 20V
- Vgs(th) (Max) @ Id: 4.3V @ 10mA
- Gate Charge (Qg) (Max) @ Vgs: 106 nC @ 20 V
- Vgs (Max): +25V, -15V
- Input Capacitance (Ciss) (Max) @ Vds: 1789 pF @ 800 V
- FET Feature: -
- Power Dissipation (Max): 357W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D2PAK-7
- Package / Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Related Products
Infineon Technologies
BSP129L6327HTSA1
Vishay Siliconix
SIHP22N60EL-GE3
Fairchild Semiconductor
FDS7766
Infineon Technologies
BSS131H6327XTSA1
Infineon Technologies
BSZ070N08LS5ATMA1
onsemi
NVMYS1D2N04CLTWG
onsemi
NTBV45N06T4G
Rectron USA

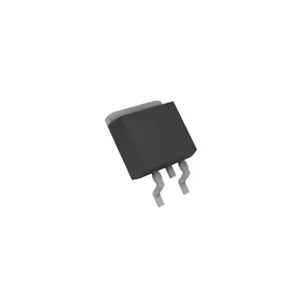

RM7N600LD
