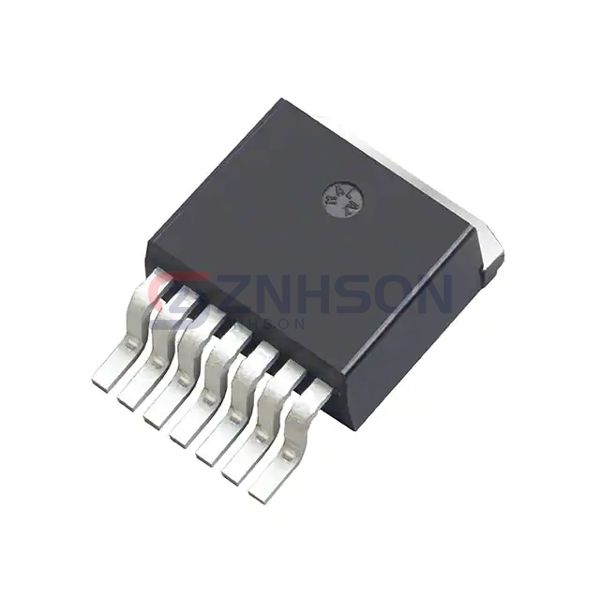

NTBG080N120SC1
onsemi
onsemi
SICFET N-CH 1200V 30A D2PAK-7
$14.75
Available to order
Reference Price (USD)
1+
$14.75000
500+
$14.6025
1000+
$14.455
1500+
$14.3075
2000+
$14.16
2500+
$14.0125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NTBG080N120SC1 from onsemi redefines excellence in the Transistors - FETs, MOSFETs - Single classification. This Discrete Semiconductor Product boasts advanced thermal management, high-frequency operation, and exceptional durability. Whether you're designing medical equipment, aerospace systems, or IoT devices, the NTBG080N120SC1 offers the precision and reliability you need. Trust onsemi to power your next breakthrough innovation.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 30A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 110mOhm @ 20A, 20V
- Vgs(th) (Max) @ Id: 4.3V @ 5mA
- Gate Charge (Qg) (Max) @ Vgs: 56 nC @ 20 V
- Vgs (Max): +25, -15V
- Input Capacitance (Ciss) (Max) @ Vds: 1154 pF @ 800 V
- FET Feature: -
- Power Dissipation (Max): 179W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D2PAK-7
- Package / Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
