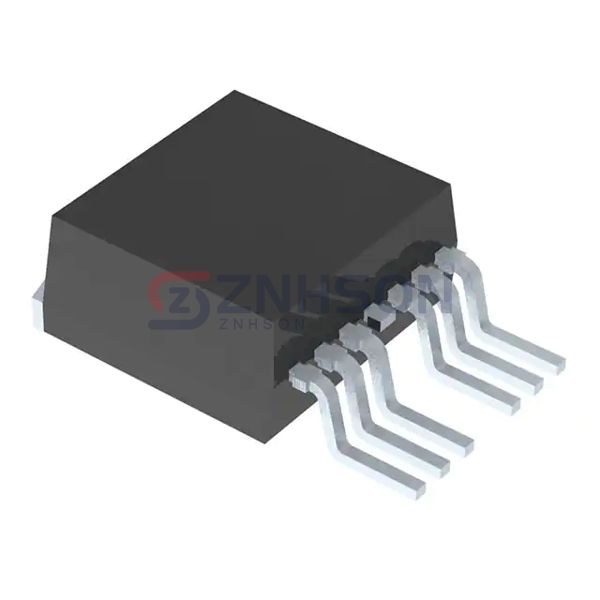

NTBGS4D1N15MC
onsemi
onsemi
MOSFET N-CH 150V 20A/185A D2PAK
$6.24
Available to order
Reference Price (USD)
1+
$6.24000
500+
$6.1776
1000+
$6.1152
1500+
$6.0528
2000+
$5.9904
2500+
$5.928
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NTBGS4D1N15MC from onsemi sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to onsemi's NTBGS4D1N15MC for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 150 V
- Current - Continuous Drain (Id) @ 25°C: 20A (Ta), 185A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 8V, 10V
- Rds On (Max) @ Id, Vgs: 4.1mOhm @ 104A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 574µA
- Gate Charge (Qg) (Max) @ Vgs: 88.9 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 7285 pF @ 75 V
- FET Feature: -
- Power Dissipation (Max): 3.7W (Ta), 316W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D2PAK (TO-263)
- Package / Case: TO-263-7, D²Pak (6 Leads + Tab)
