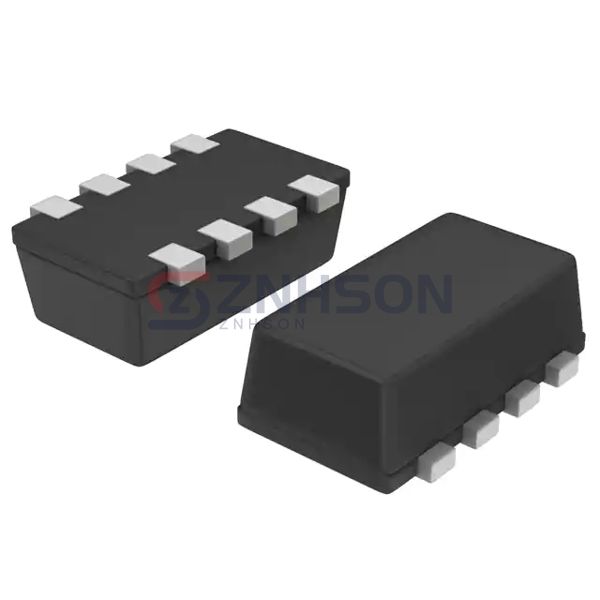

NTHD3133PFT1G
onsemi
onsemi
MOSFET P-CH 20V 3.2A CHIPFET
$0.19
Available to order
Reference Price (USD)
1+
$0.19000
500+
$0.1881
1000+
$0.1862
1500+
$0.1843
2000+
$0.1824
2500+
$0.1805
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the NTHD3133PFT1G from onsemi, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the NTHD3133PFT1G ensures reliable performance in demanding environments. Upgrade your circuit designs with onsemi's cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 3.2A (Tj)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 80mOhm @ 3.2A, 4.5V
- Vgs(th) (Max) @ Id: 1.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 7.4 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 680 pF @ 10 V
- FET Feature: Schottky Diode (Isolated)
- Power Dissipation (Max): 1.1W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: ChipFET™
- Package / Case: 8-SMD, Flat Lead
Related Products
Infineon Technologies
IRFR3806TRPBF
onsemi
ATP602-TL-H
onsemi
NVMYS021N06CLTWG
Infineon Technologies
IPA032N06N3GXKSA1
Vishay Siliconix
SI2307BDS-T1-BE3
Vishay Siliconix
IRFR9010TRPBF
Nexperia USA Inc.
PMV100XPEA,215
IXYS

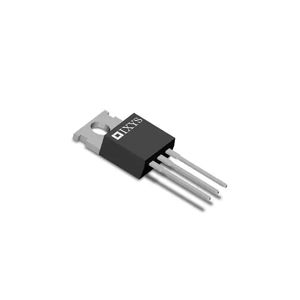

IXTP94N20X4
onsemi

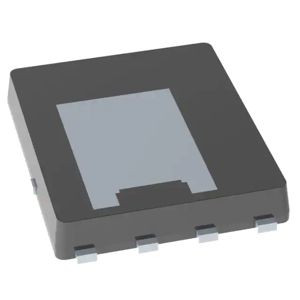

NTMFSC1D6N06CL
