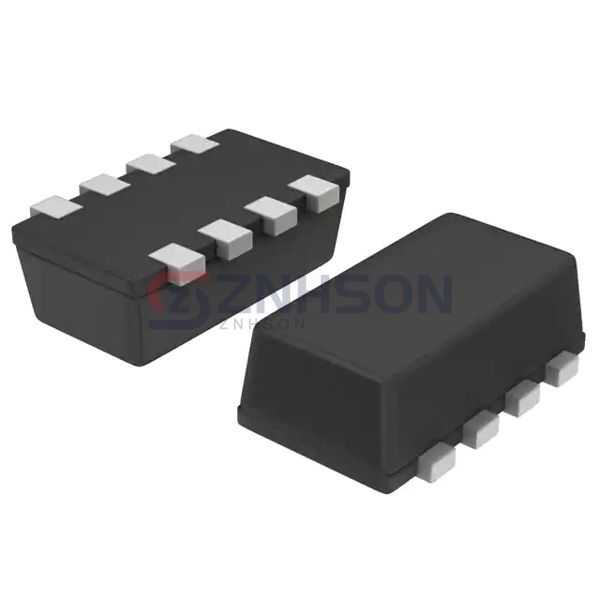

NTHS5404T1G
onsemi
onsemi
MOSFET N-CH 20V 5.2A CHIPFET
$1.08
Available to order
Reference Price (USD)
3,000+
$0.26405
6,000+
$0.24786
15,000+
$0.23168
30,000+
$0.22036
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NTHS5404T1G from onsemi sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to onsemi's NTHS5404T1G for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 5.2A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 30mOhm @ 5.2A, 4.5V
- Vgs(th) (Max) @ Id: 600mV @ 250µA (Min)
- Gate Charge (Qg) (Max) @ Vgs: 18 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: -
- FET Feature: -
- Power Dissipation (Max): 1.3W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: ChipFET™
- Package / Case: 8-SMD, Flat Lead
Related Products
IXYS
IXFP16N50P3
Fairchild Semiconductor
RFG40N10
Diodes Incorporated
MMBF170-7-F
Diodes Incorporated
DMTH4014LPSW-13
IXYS
IXFP56N30X3M
Infineon Technologies
IAUS200N08S5N023ATMA1
onsemi
NTTFS002N04CLTAG
Nexperia USA Inc.
PXP020-20QXJ
onsemi
FDD8880

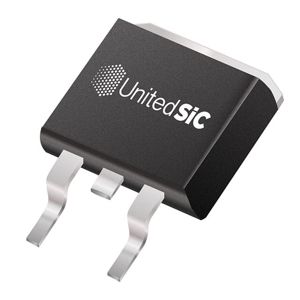

UnitedSiC
