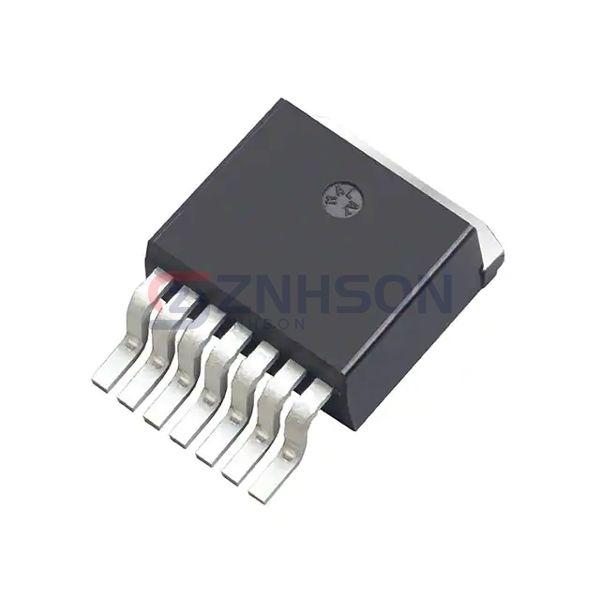

NVBG040N120SC1
onsemi
onsemi
TRANS SJT N-CH 1200V 60A D2PAK-7
$26.13
Available to order
Reference Price (USD)
1+
$26.13000
500+
$25.8687
1000+
$25.6074
1500+
$25.3461
2000+
$25.0848
2500+
$24.8235
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NVBG040N120SC1 from onsemi sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to onsemi's NVBG040N120SC1 for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 60A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 56mOhm @ 35A, 20V
- Vgs(th) (Max) @ Id: 4.3V @ 10mA
- Gate Charge (Qg) (Max) @ Vgs: 106 nC @ 20 V
- Vgs (Max): +25V, -15V
- Input Capacitance (Ciss) (Max) @ Vds: 1789 pF @ 800 V
- FET Feature: -
- Power Dissipation (Max): 357W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D2PAK-7
- Package / Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
